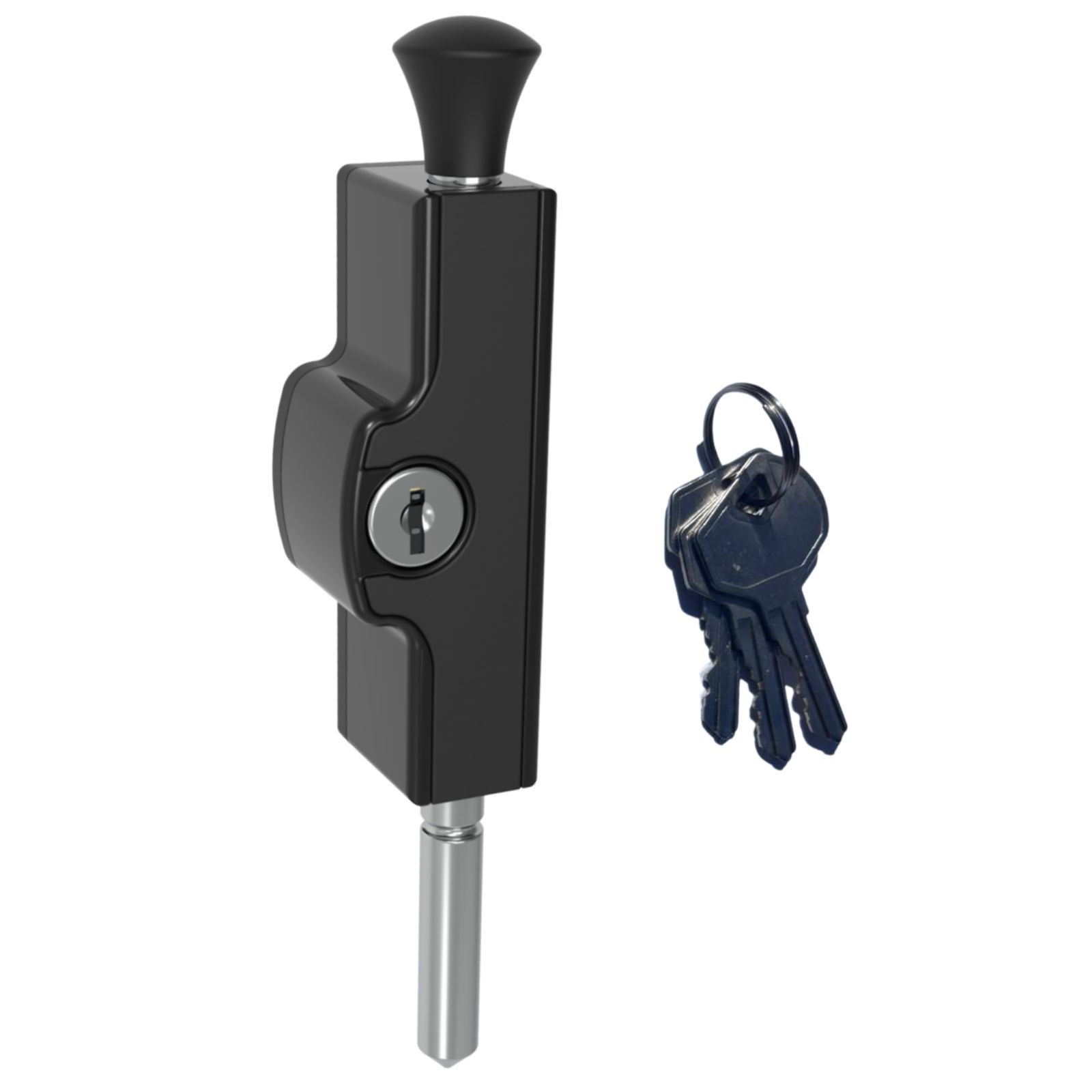

Patio Bolt Lock Black Single SS

The TradeBase Bolt Lock Black Patio Door Bolt provides robust, dependable security for sliding, hinged, and French doors. Featuring a solid zinc die-cast body and 9.5 mm hardened steel bolt, this lock resists cutting and prying while maintaining a sleek, concealed-fixing finish.

Reversible for left- or right-hand installation, it’s ideal for timber or aluminium frames and includes all required hardware for a clean, professional fit.

Applications

• Sliding patio doors
• Hinged timber or aluminium doors
• French doors and balcony entries

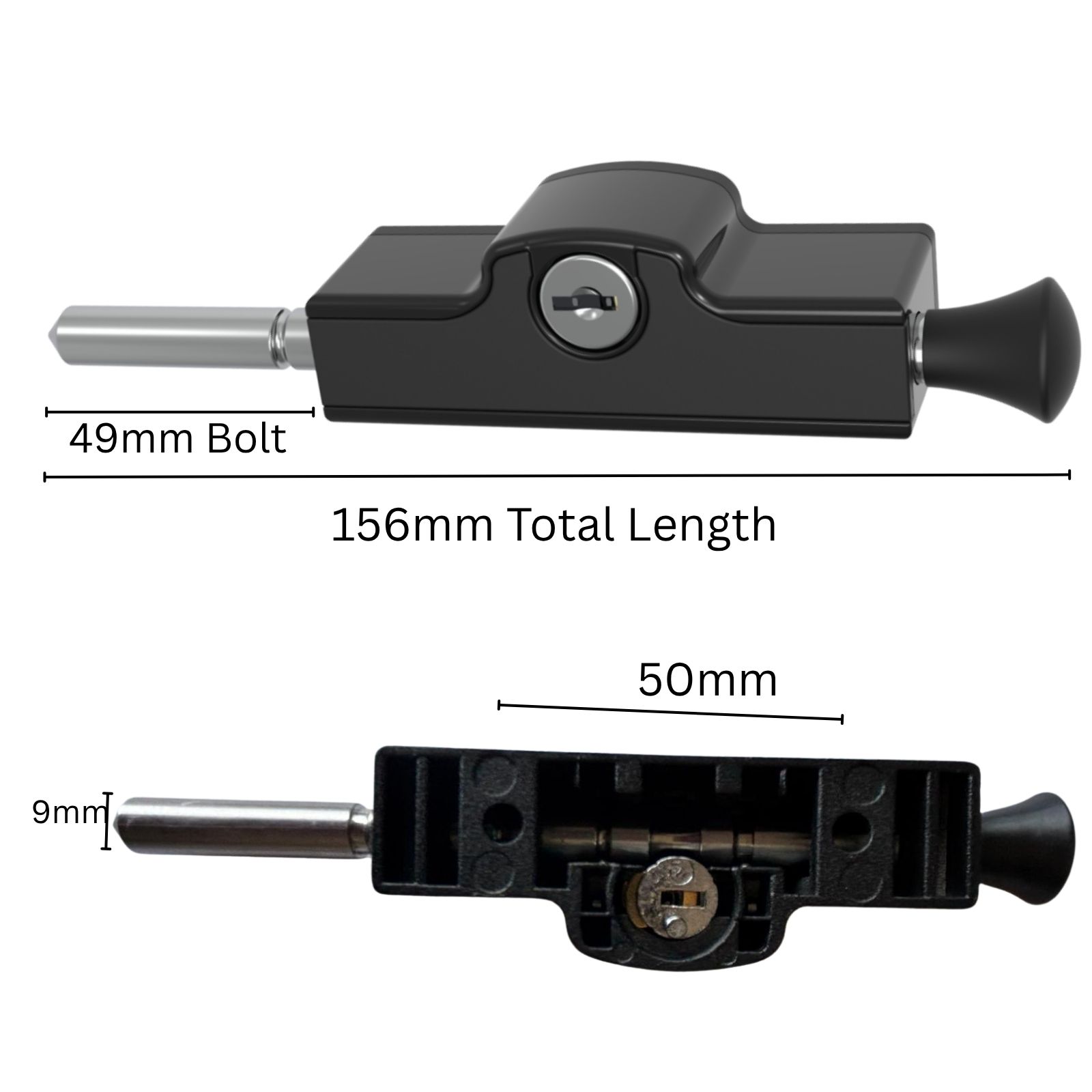

Specifications

• Body Length: 156 mm
• Bolt Diameter: 9.5 mm
• Bolt Throw: 49 mm
• Material: Zinc die-cast body with 304 Stainless steel  steel bolt
• Finish: Black powder-coat
• Keys: 3 (Keyed Alike)

10 Year Warranty

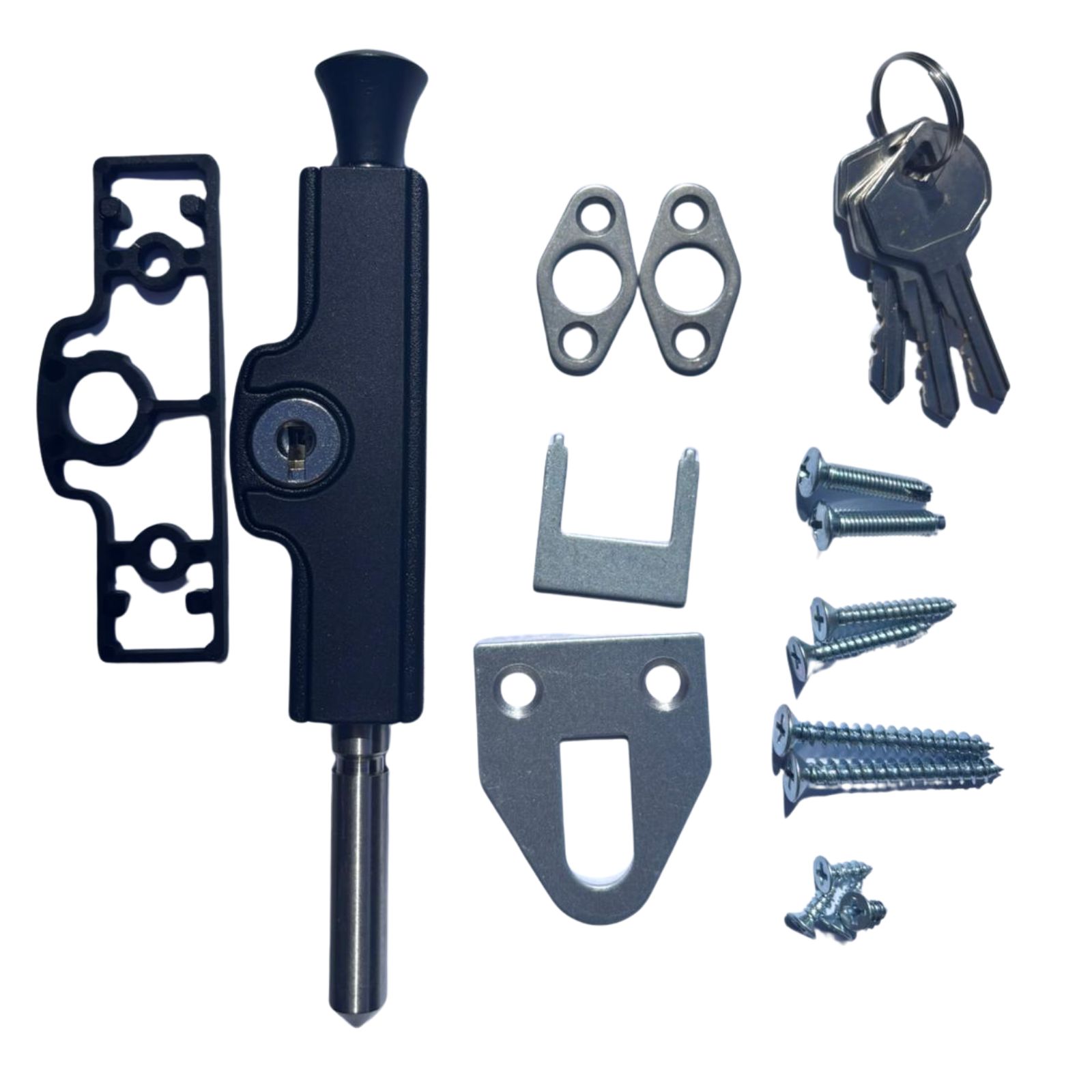

Parts Included in Pack

• 1 × Bolt Lock Body (156 mm, black finish)
• 1 × Flat Steel Keeper Plate (for frame mounting or sliding applications)
• 1 × Stainless Steel Ferrule (for timber door use)
• 1 × Barrel Lock Plug with Retaining Nut (pre-installed in body)
• 1 × Reversible Bolt Assembly (9.5 mm diameter, 49 mm throw)
• 3 × Keys (Keyed Alike)
• 2 × Concealed Fixing Covers (to hide screw heads)
• 1 × Screw Pack (including mounting screws for body and keeper)
• 1 × Instruction Leaflet (installation and drilling template)
