Security Screen Door Lock Guard Frame Mount Shield

Protect your home with the TradeBase Frame-Mount Lock Guard — a strong, clear polycarbonate shield designed to prevent intruders from reaching through the mesh to operate your snib or key.
This version mounts directly onto the door frame and includes 4 x large-flange stainless-steel tapping screws for secure, long-lasting installation. Made from 4 mm impact-resistant polycarbonate, it’s tough, UV-stable, and blends discreetly with your existing screen door design.

Specifications
Material: Polycarbonate
Finish/Colour: Clear
Thickness: 4 mm

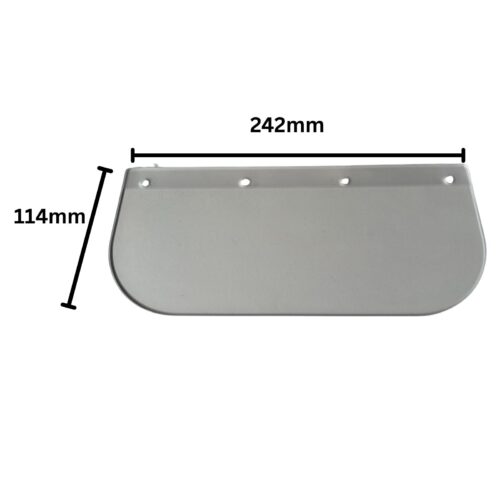

Width: 114 mm
Length: 242 mm
Weight: ~70 g
Fixings Supplied: Yes – 4 x stainless-steel tapping screws
Model / MPN: GSSD
Country of Origin: China
Warranty: 10 Years

What’s in the Box

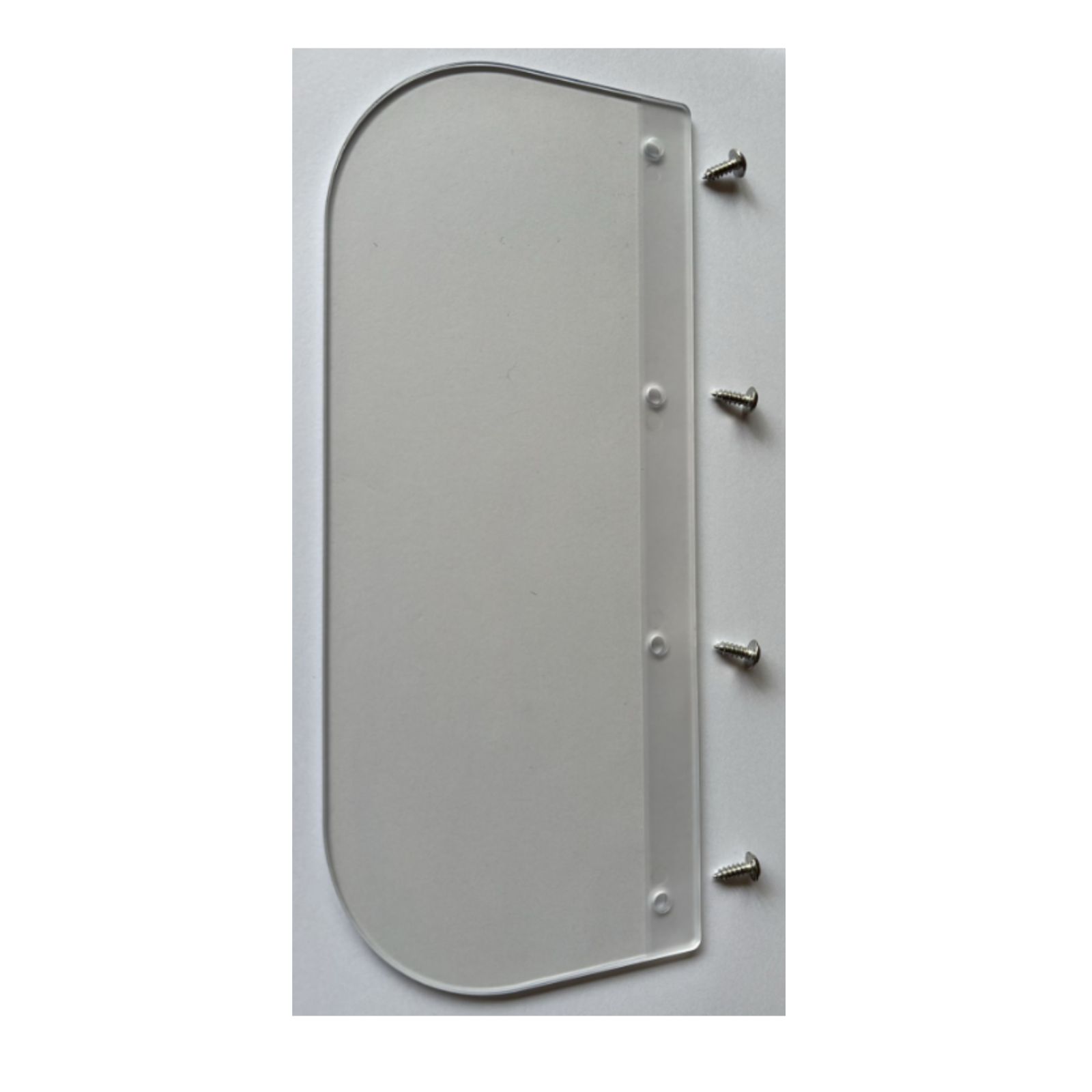

1 × Lock Guard (frame-mount model)
4 × Large-flange stainless-steel tapping screws

Installation (Summary)

1. Align the Lock Guard on the door frame so the second screw hole from the bottom sits level with the key entry point.

2. Mark all 4 holes with a pencil and remove the guard.

3. Drill pilot holes (use 3 mm or 7/64” bit) to the depth of the screw.

4. Place the guard back over the holes and secure with the 4 screws supplied.

5. Do not over-tighten. Ensure a firm fit against the frame.

Note: Fits most security doors. Use a Phillips head screwdriver and drill for installation.
