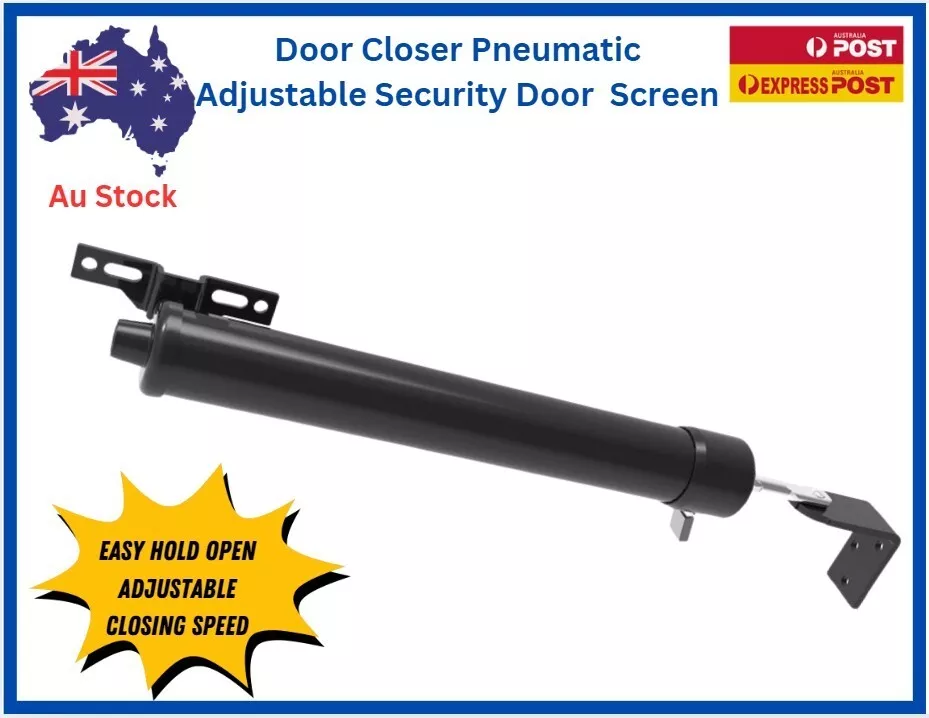

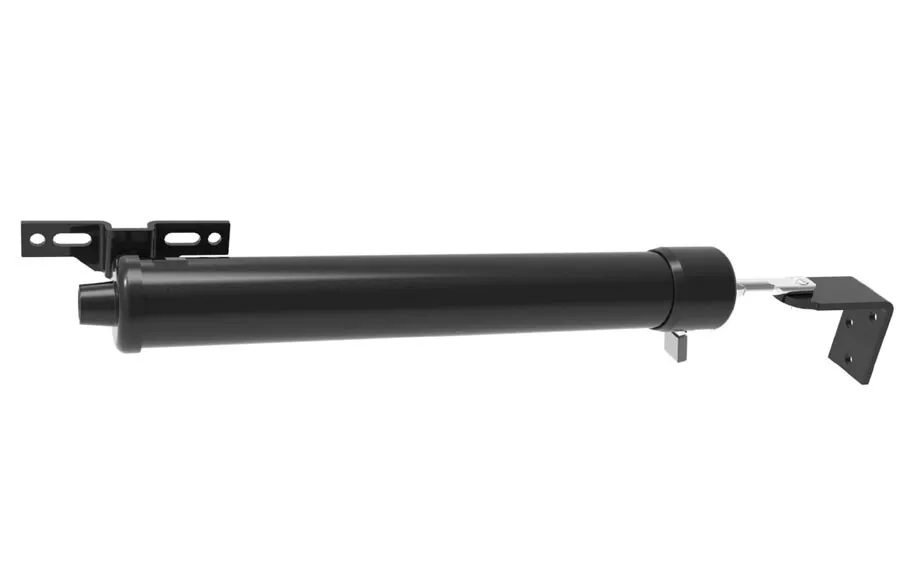

Security Screen Door Closer Pneumatic Black

Easy Screen Door Closer – with ANTISLAM® technology

Features:

• Sturdy Construction: Built with tough aluminium and UV-resistant ABS polymer for enhanced durability.
• Smooth Pneumatic Operation: Ensures smooth and controlled door closing.
• Adjustable Closing Speed: Easily customise the closing speed to suit your preferences.

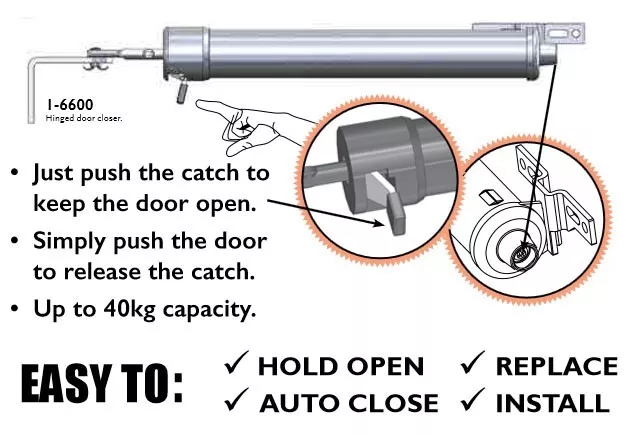

• Hold Open Bracket: Conveniently hold the door open when needed.
• Quick and Easy Installation: Includes all fixings and step-by-step instructions on the package for hassle-free installation.
• Modern Design: The Profile Series offers sleek, contemporary designs tailored for the budget-conscious renovator.
• Versatile Application: Suitable for hinged screen doors or light internal doors, weighing up to 21kg.
• Durability: Tested for over 60,000 cycles, ensuring long-lasting performance.

Additional Benefits:

• Can replace most existing screen door closers.
• Pneumatic operation guarantees smooth closing.
• Designed for both right and left-hand hinged doors.
• Extra soft film for added protection.

Pack Contents:

• Cylinder x 1
• Door Bracket x 1
• Jamb Bracket x 1
• Closer Rod x 1
• Screw Kit Contains:
  • 3mm x 20mm screws x 2
  • 3mm x 12mm screws x 2
  • 3mm x 10mm self-drilling screws x 2

Fitting Instructions:

1. Jamb Bracket Positioning:
   Attach jamb bracket to door jamb using 3mm x 20mm screws. Ensure the bracket is 25mm back from the door edge.
2. Closer Rod Insertion:
   Insert closer rod into the jamb bracket slot. Ensure the bent end of the rod points towards the door.
3. Door Bracket Installation:
   Close the door. Hold the door bracket over the bent rod end, ensuring it lines up with the door. Attach the door bracket to the door using 3mm x 12mm screws.
4. Closer Cylinder Connection:
   Attach the closer cylinder to the jamb bracket with the smaller end nearest the jamb bracket slot.
5. Adjust Closing Speed (Optional):
   Rotate the adjusting screw on the closer cylinder. Turn clockwise to decrease the speed or anti-clockwise to increase.
