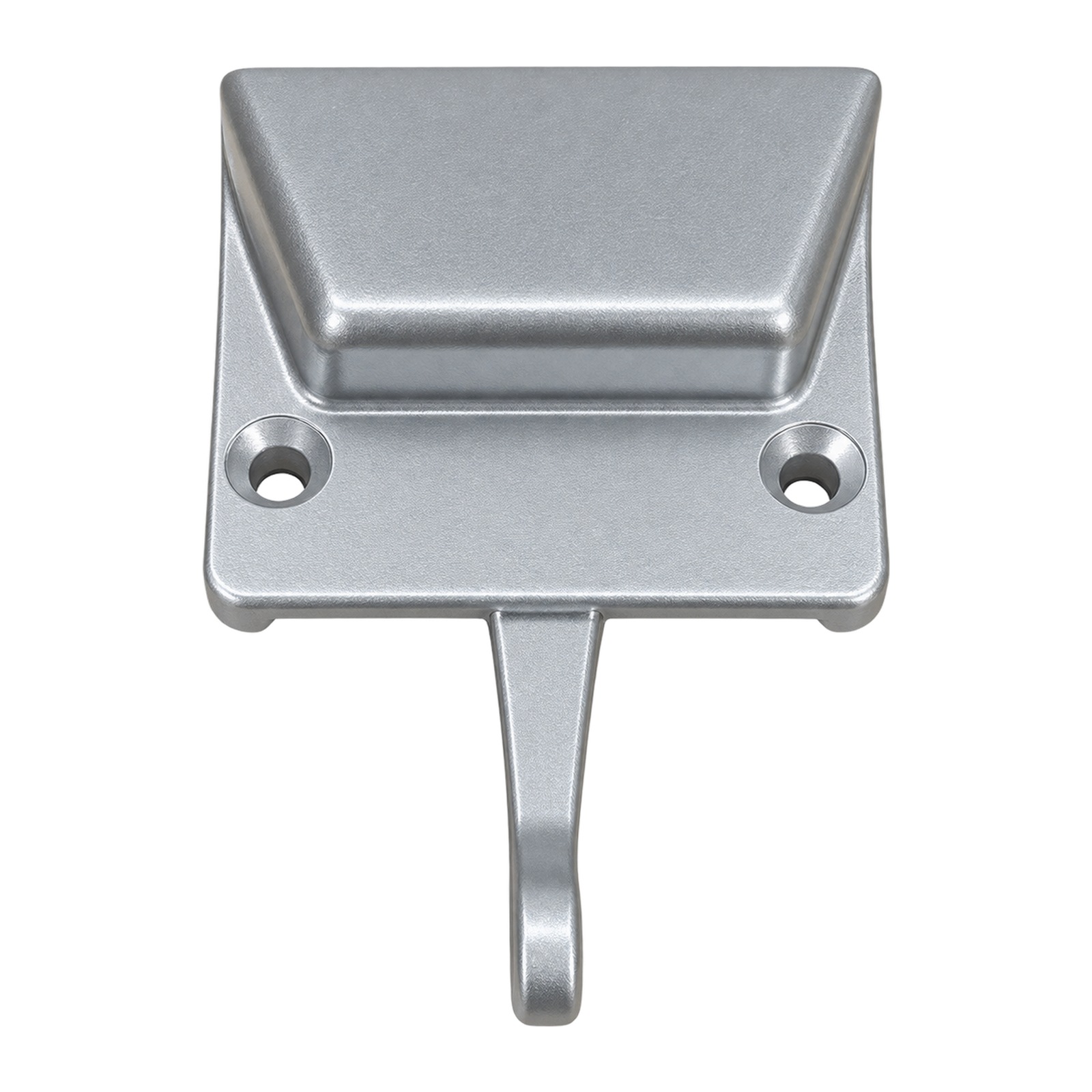

Window Sash Cam Lock – Silver – Lock Only – Double Hung, Vertical or Horizontal – Suits HomeGard™ Style

Lock only – keepers sold separately. A low profile Silver window sash cam lock for double hung windows, vertical or horizontal. Replace a broken or worn lock without changing your frame hardware – in most cases your existing keepers can be reused.

Key Features

• Low profile cam action lock for double hung windows – vertical or horizontal sashes
• Non-handed – one lock fits left or right
• Silver finish – the range comes in 7 colours to match your frames

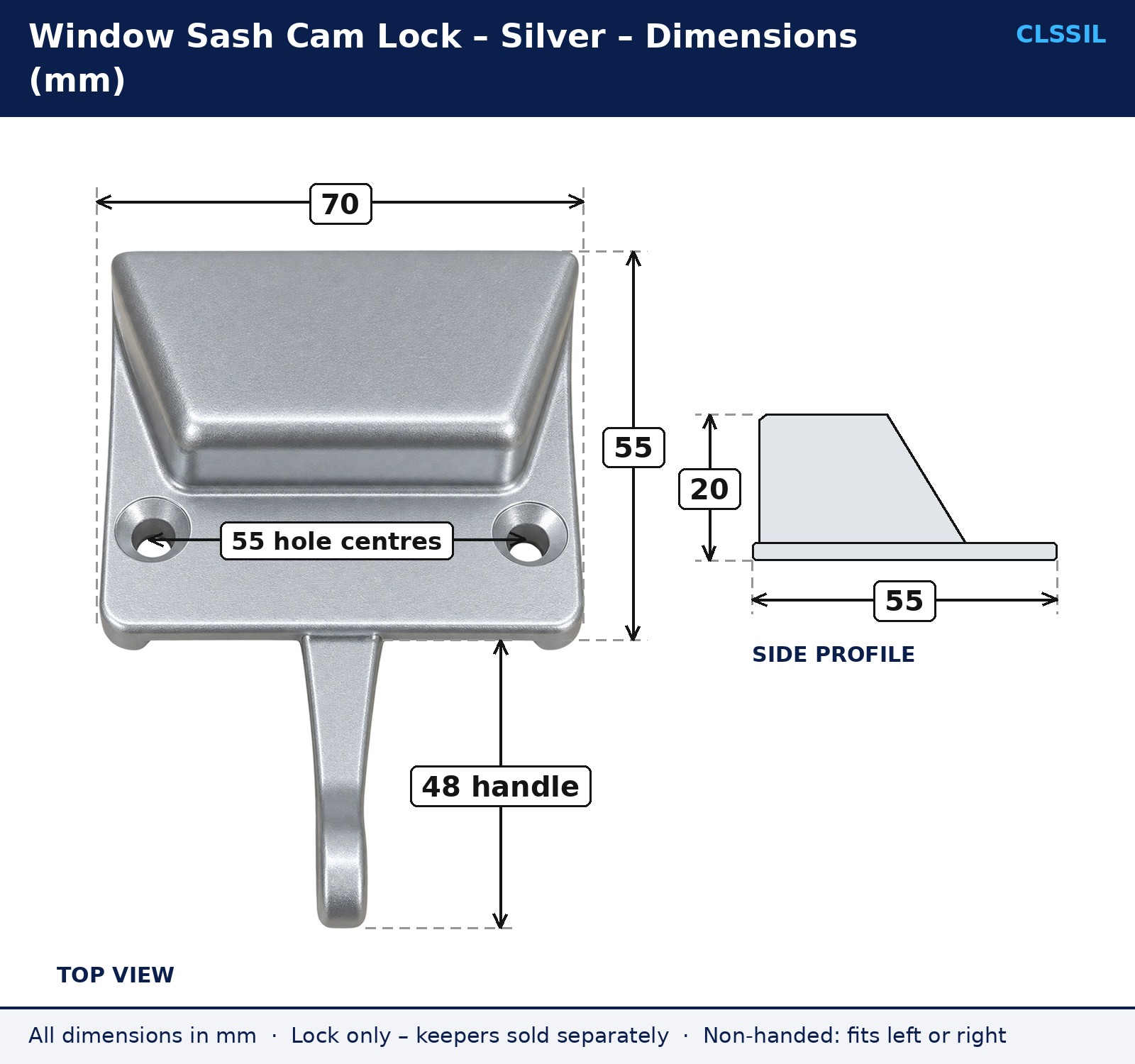

• Suits HomeGard™ style sash locks – check the dimension drawing before ordering
• Two countersunk fixing holes at 55 mm centres

Ideal For

• Replacing broken, seized or worn sash locks
• Timber and aluminium double hung windows
• Landlords, strata managers and renovators matching hardware colours

Pack Contents

• 1 × window sash cam lock (Silver) – keepers not included
• 2 × stainless steel fixing screws

Specifications

• Width: 70 mm
• Depth: 55 mm
• Height: 20 mm
• Fixing hole centres: 55 mm
• Handle length: 48 mm
• Weight: 100 g
• Colour: Silver
• Handing: non-handed (fits left or right)
• Brand: TradeBase

Warranty

10-year warranty. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
