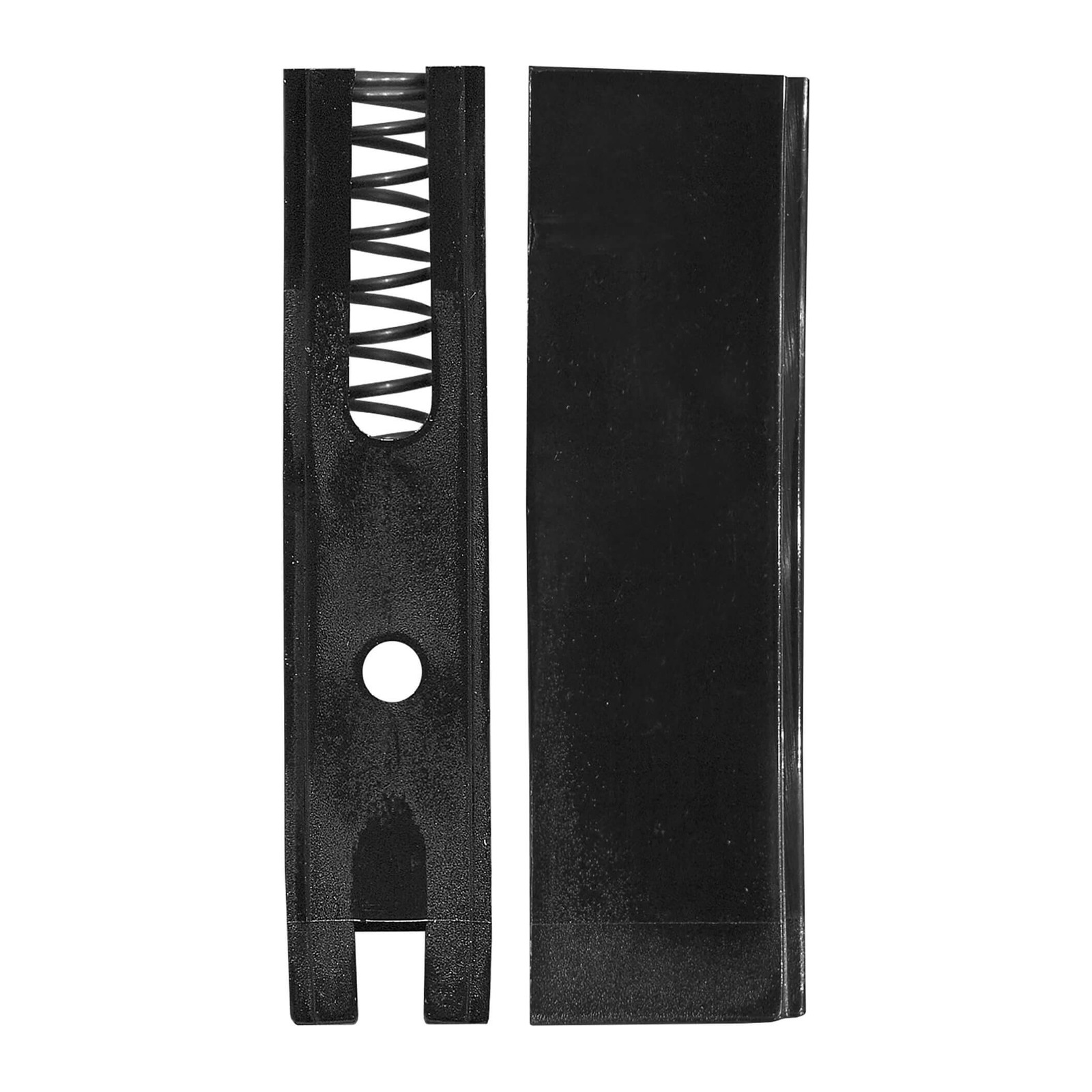

52.2mm Sliding Door Guide – Suits Cyclone™ Screen Doors

A direct replacement bottom sliding door guide for screen doors. Spring loaded. Suits Boral® KM™ Cyclone, old G.James® and others. Our 61mm Sliding Door Guide (SKU GDE61) can also be used as the bottom guide. For the top guide, use our Sliding Screen Door Top Guide, Plastic 2 Pack (SKU GDETOP25) or our 57.3mm Sliding Door Guide (SKU GDE57).

Key Features

• Bottom guide
• Spring loaded
• Overall 15.6 x 52.2mm
• Australian stock, dispatched within 5 business days

Fits & Replaces

• Direct replacement for Boral® KM™ Cyclone and older G.James® sliding screen door bottom guides.
• Fit is decided by the overall guide size of 15.6 x 52.2mm — measure your old guide over its full length and width before ordering
• Print the Actual Size Identifier below and lay your old part straight onto it — that confirms the fit in seconds

Specifications

• TradeBase SKU: GDE52

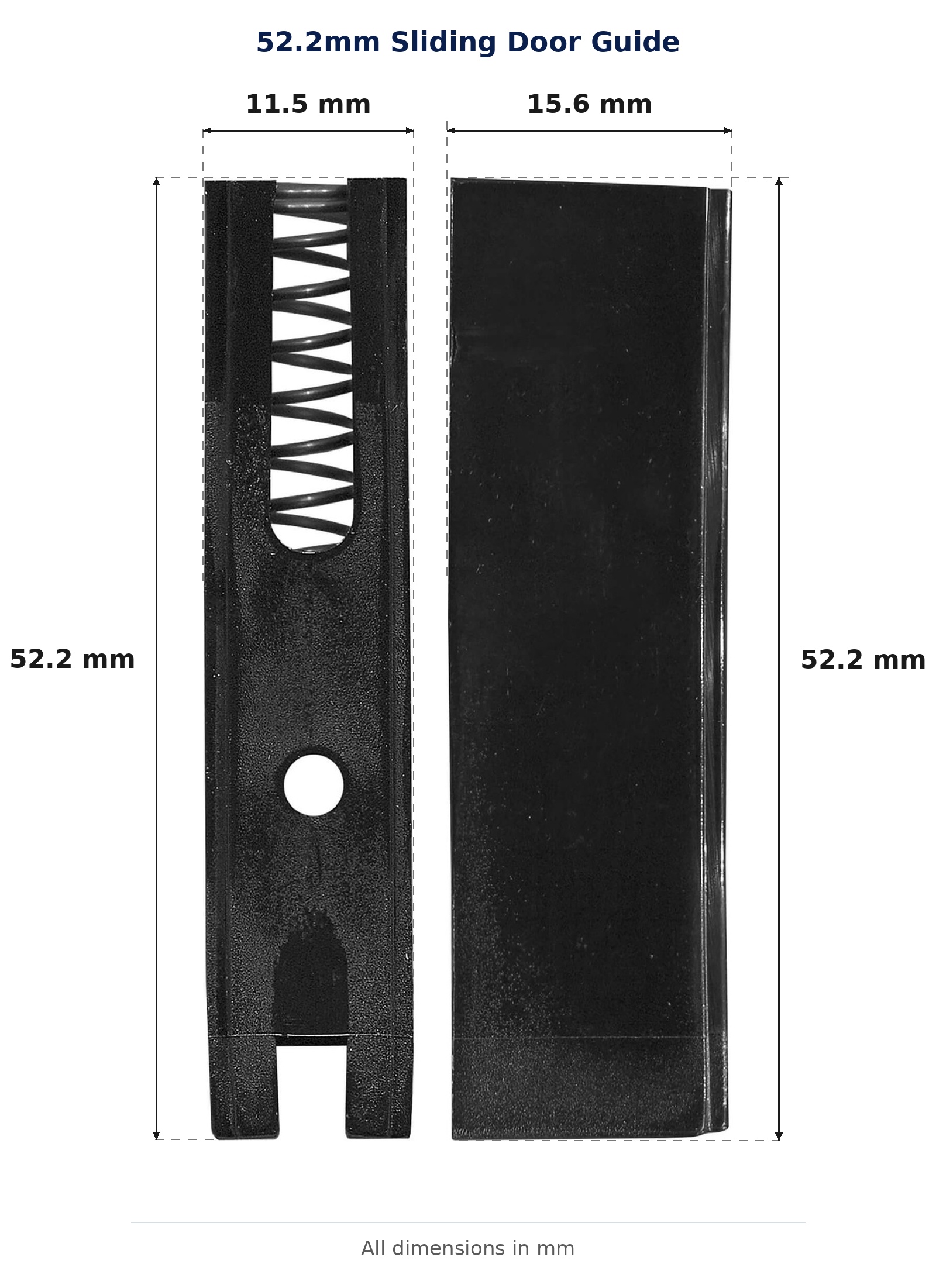

• Overall size: 15.6 x 52.2mm
• Spring loaded

Installation Tips

• Note which way the old guide sits before you take it out — a spring-loaded guide fitted the wrong way round will not hold the door into the track.
• Clean the bottom track out before refitting. Grit packed in the channel makes the door jam and wears the guide flat.
• Check the spring moves freely once the guide is in, then slide the door through its full travel before refitting the stops.

Care & Maintenance

• Sweep the track out every few months, more often in coastal or dusty areas, and keep the spring dry — oil and grease only hold grit against it.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.

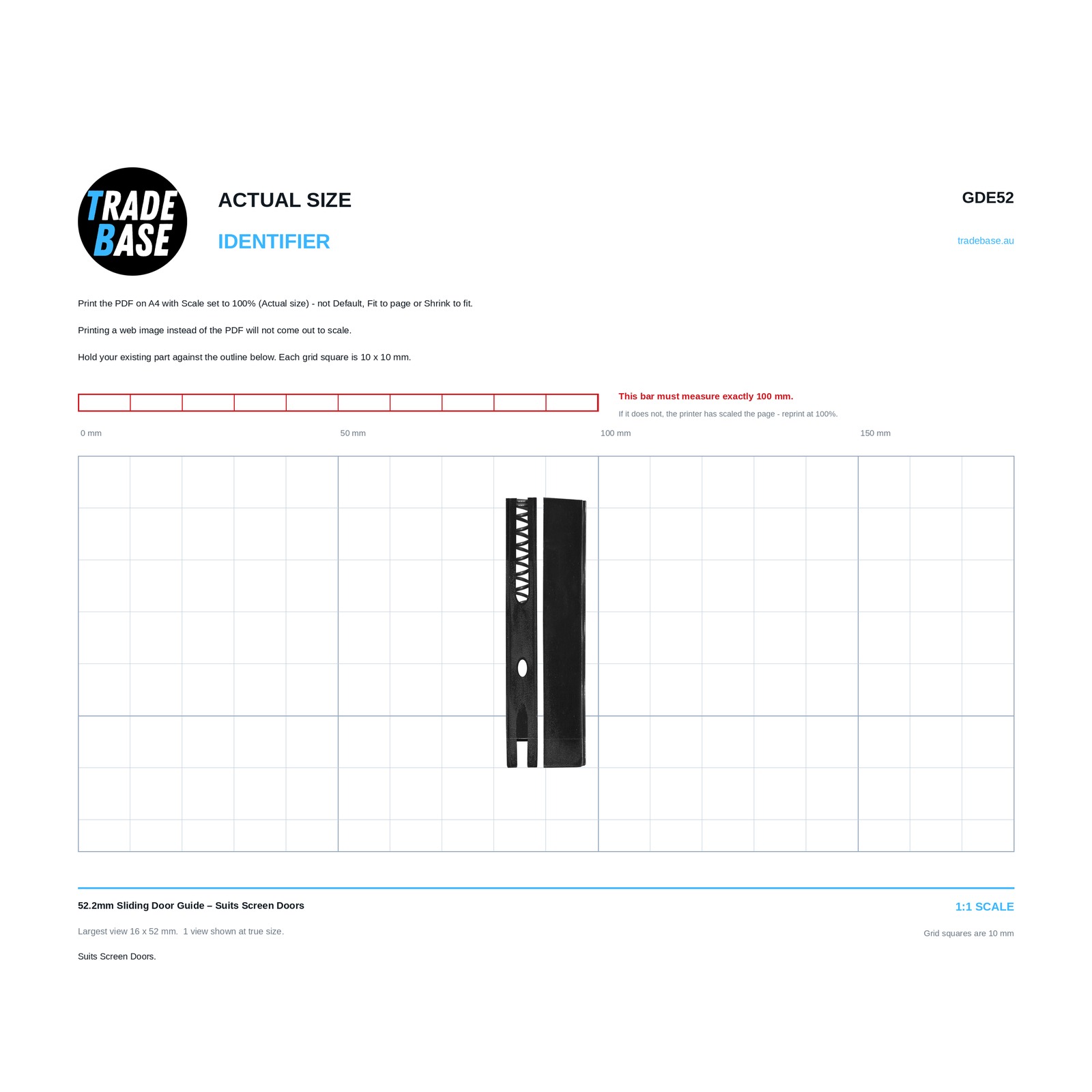

Check the fit before you buy

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 15.6 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
