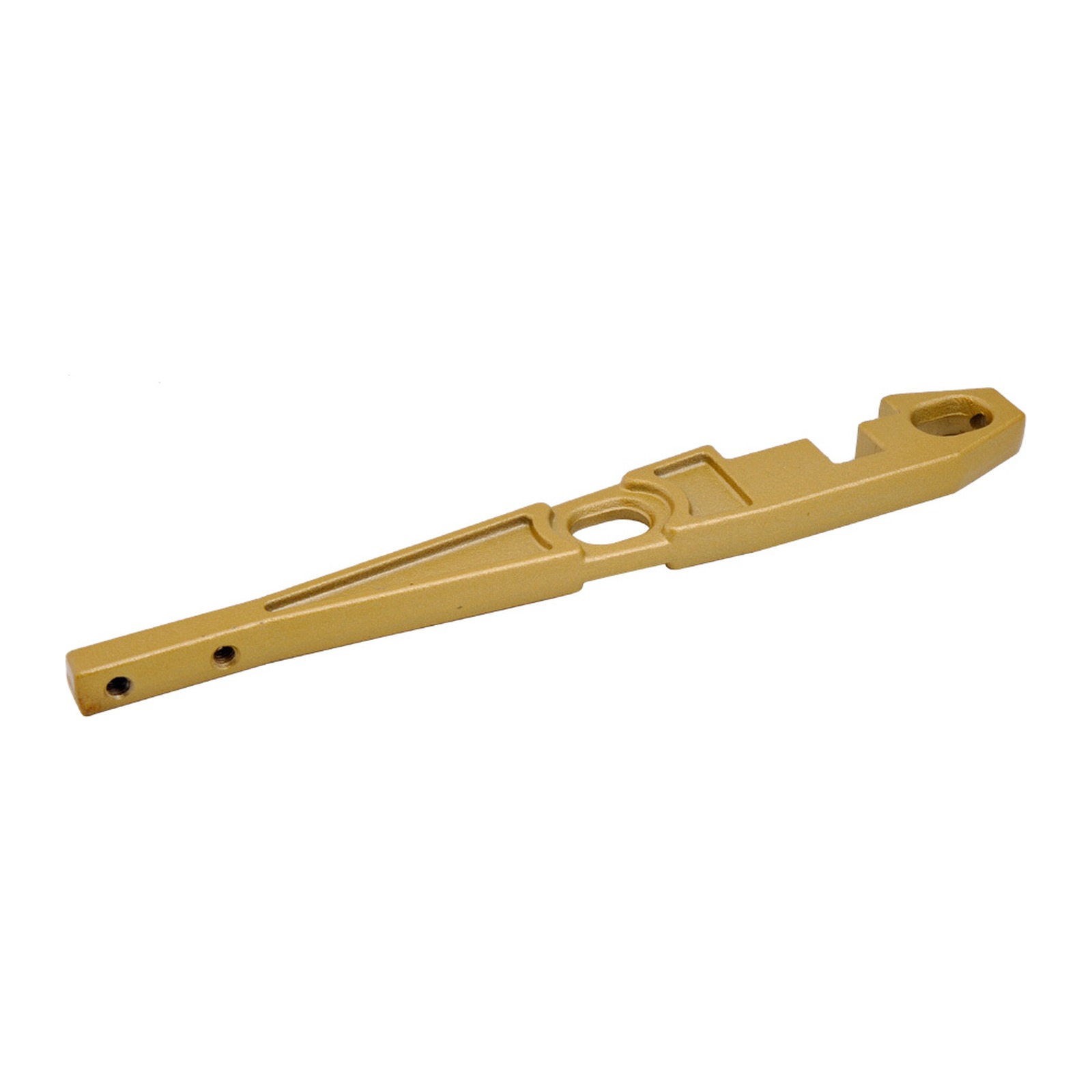

Adjustable Side Loading Arm – Suits Ryobi™ 30 Series Concealed Door Closers

A concealed overhead door closer sits hidden inside the head of the door frame and connects to the door through a sliding arm and channel. It is common on aluminium shopfront doors because nothing shows when the door is closed. The floor pivot, arm channel and side loading arm that go with the Ryobi™ 30 series closers are sold separately in this range.

Choose by three things. Door weight: the 30-2x models suit doors up to 70 kg, the 30-3x up to 110 kg and the 30-4x up to 170 kg. Opening angle: 90° or 105°. And whether you want the door to hold open. The last digit of the model sets the angle and hold-open option.

A concealed closer works with a floor pivot at the bottom of the door, an arm channel set into the top rail and a side loading arm that links the two. Each of these is sold separately in this range, along with the fixing pack for the side loading arm, so you can replace a single worn part without buying a whole new closer.
