Commercial Hydraulic Door Closer Adjustable Overhead Silver 120kg

Key Features

• Heavy-duty commercial hydraulic door closer rated for doors up to 120kg
• Non-positioning (auto-closing) — the door does not hold open at 90°; it closes smoothly and automatically every time
• Two independent hydraulic valves — separately adjust closing speed (150°–20°) and latching speed (20°–0°)
• Die-cast aluminium alloy body with three-coat paint finish for corrosion resistance
• High-carbon steel pinion shaft and rack, high-frequency tempered for durability
• Non-handed — suits left or right opening doors
• Suits timber and aluminium doors
• Precision oil seal to prevent leakage

Positioning vs Non-Positioning

Door closers come in two types. A 90° positioning closer holds the door open when swung to 90° and you close it by hand. A non-positioning closer does not stop at 90° — it closes the door automatically. This model is non-positioning (automatic closing).

Ideal For

Heavy, wide doors between 1000–1300mm wide and up to 120kg — main entry doors, commercial and industrial doors, stairwell and corridor doors, and heavy solid-core doors.

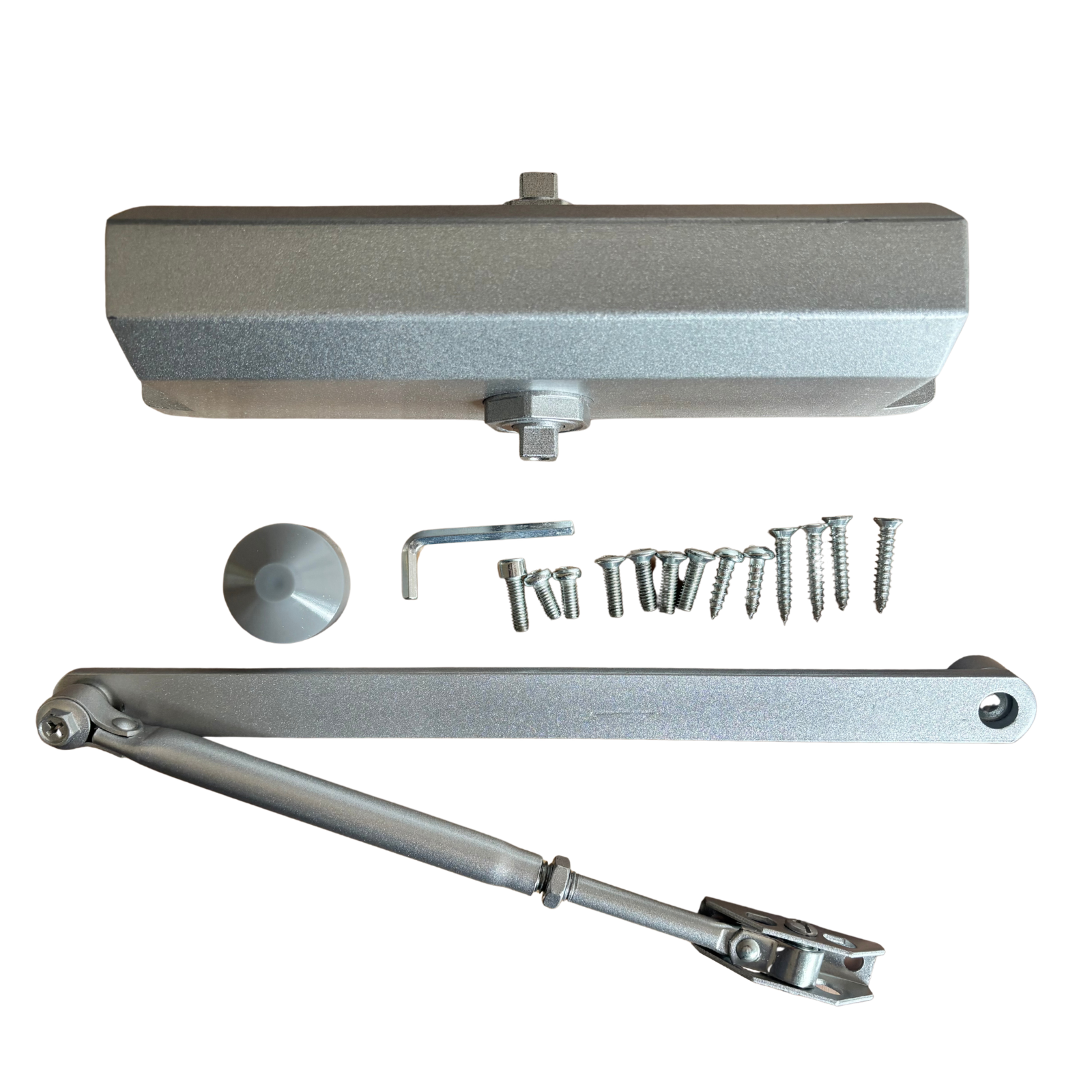

Pack Contents

• 1 × hydraulic door closer body (silver)

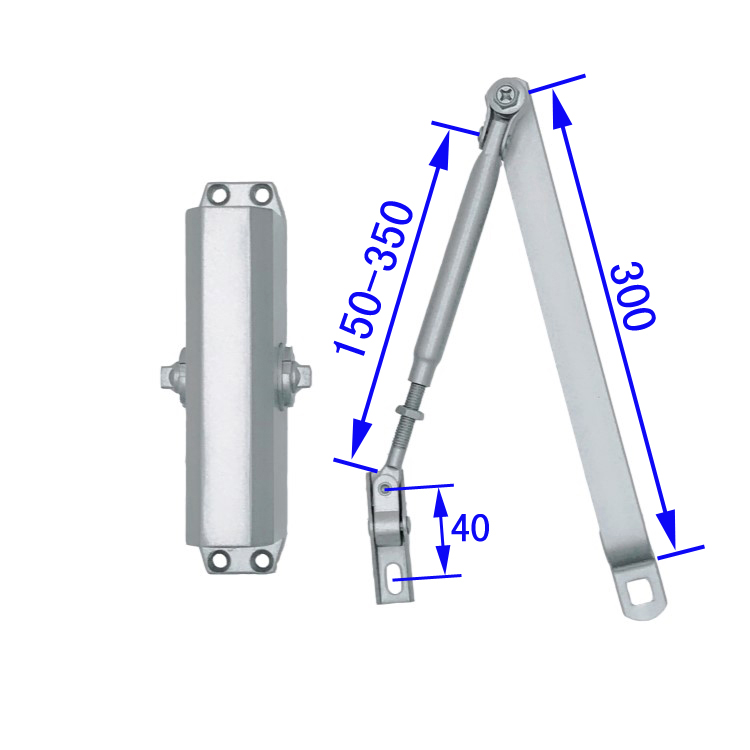

• 1 × adjustable closing arm
• 1 × cover cap
• Fixing screws

Specifications

• Closer type: Non-positioning (automatic closing, no hold-open)
• Suitable door weight: 80–120kg
• Suitable door width: 1000–1300mm

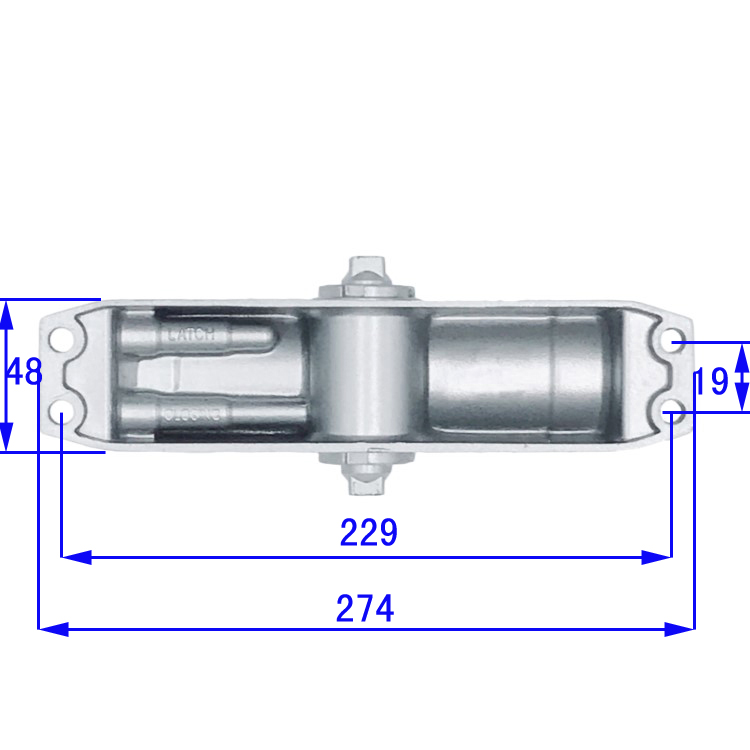

• Body length: 274mm (229mm mounting hole centres)
• Body height: 48mm
• Closing speed: adjustable 150°–20°
• Latching speed: adjustable 20°–0°
• Body material: die-cast aluminium alloy
• Finish: Silver
• Handing: non-handed (left or right)
• Unit weight: 2.36kg (packaged 2.4kg)

Warranty

Backed by a 10-year manufacturer warranty. This is in addition to the guarantees that apply under the Australian Consumer Law.
