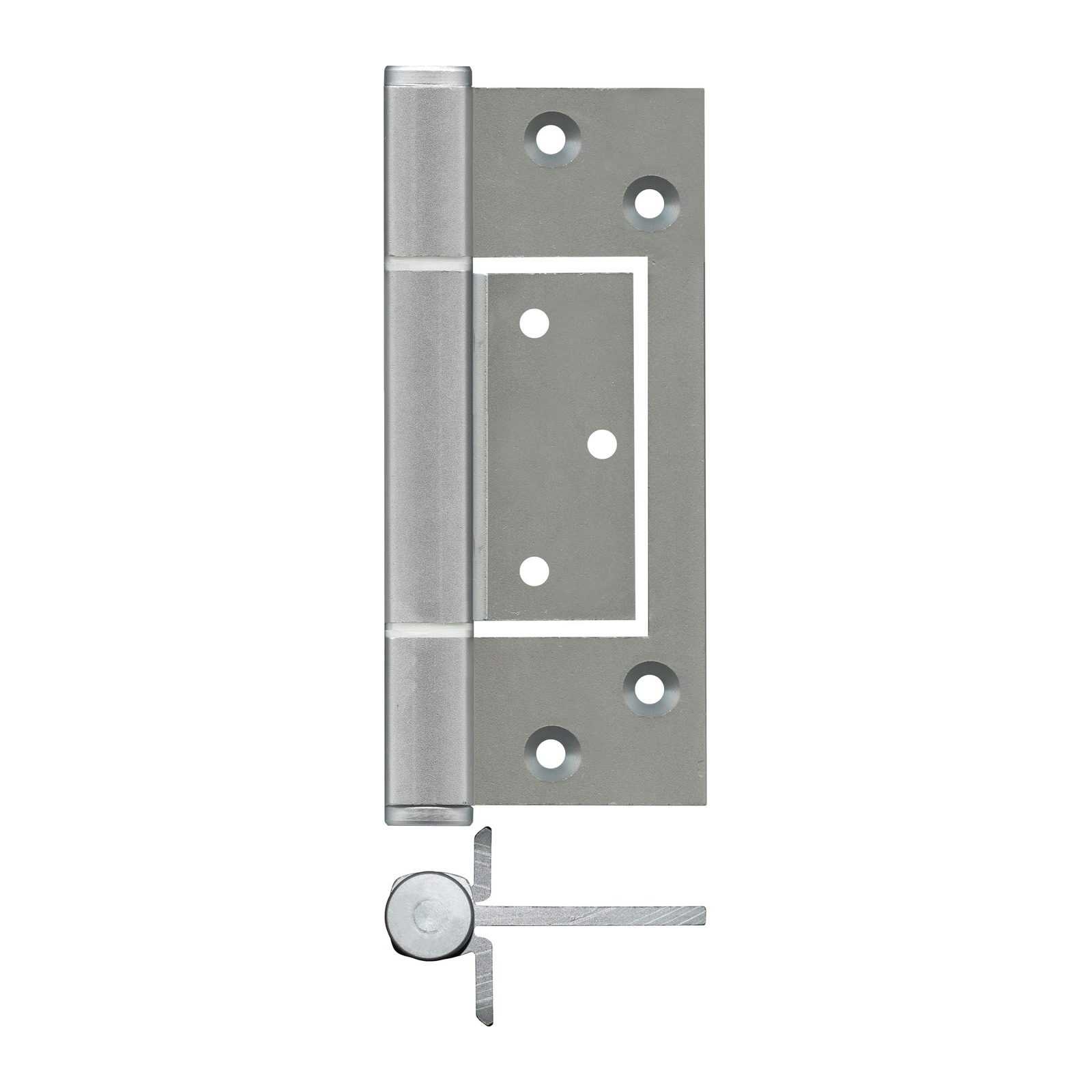

Double Fast-Fix Hinge 104 130mm – Aluminium – Stainless Pin & Screws – Clear Anodised
$15.05 inc GST
104 double fast-fix hinge. 130mm. Aluminium with aluminium end caps. Australian stock, dispatched within 3 business days.
| Colour | |
|---|---|
| Material |
Aluminium |
| Part Type |
Hinge |
Dispatched within 3 business days of ordering.
Out of stock
Key features
- 104 double fast-fix hinge
- 130mm
- Aluminium with aluminium end caps
- Stainless steel pin and screws
- Sold each
- Measures 58.7 x 141.1 mm overall including the knuckle, from the actual size drawing
About this part
104 double fast-fix hinge. Ali with ali end caps. Stainless pin and screws. 130mm.
Ideal for
Hanging new commercial, shopfront and partition doors, or replacing worn hinges on existing doors.
Specifications
- TradeBase part number: HNG5714NAT
- Colour / finish: Clear Anodised
- Material: Aluminium
- Sold as: Single unit
Frequently asked questions
A fast-fix hinge, also called a flush or hurl hinge, has one leaf that folds inside the other, so it needs no mortice in the door or frame. It screws straight onto the surface, which makes it quick to fit on commercial and partition doors.
Measure the length of your existing hinge along the knuckle, then count and compare the screw holes. This range covers 100 mm, 110 mm and 130 mm hinges. Each listing has an Actual Size Identifier you can print at 100% on A4 and hold your old hinge against to confirm the match before you order.
The ST3 fast-fix hinge suits metal frames and the ST9 suits timber. The stainless steel ST3 and ST9 are 304 grade and sold as a pair. The aluminium hinges come in black, white and clear anodised finishes with stainless steel pins, and the 168 tapered offset hinge suits hinged partition doors.
Warranty
Backed by a 10-year warranty against manufacturing defects, in addition to your rights under Australian Consumer Law.
Buying guide: not sure which lock, cylinder or closer you need? See the Commercial & Shopfront Door Hardware Buying Guide.

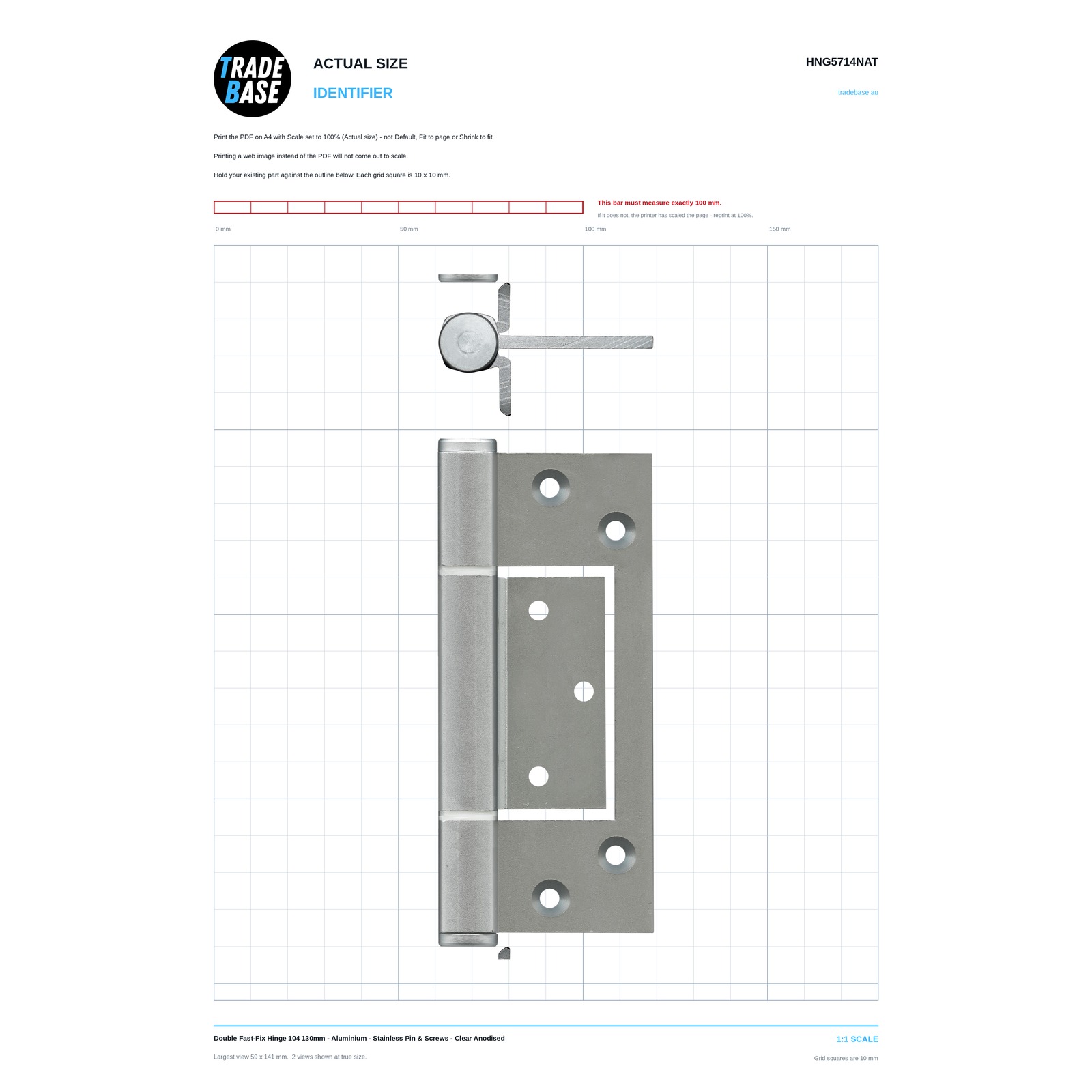

Check the fit before you buy
Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
