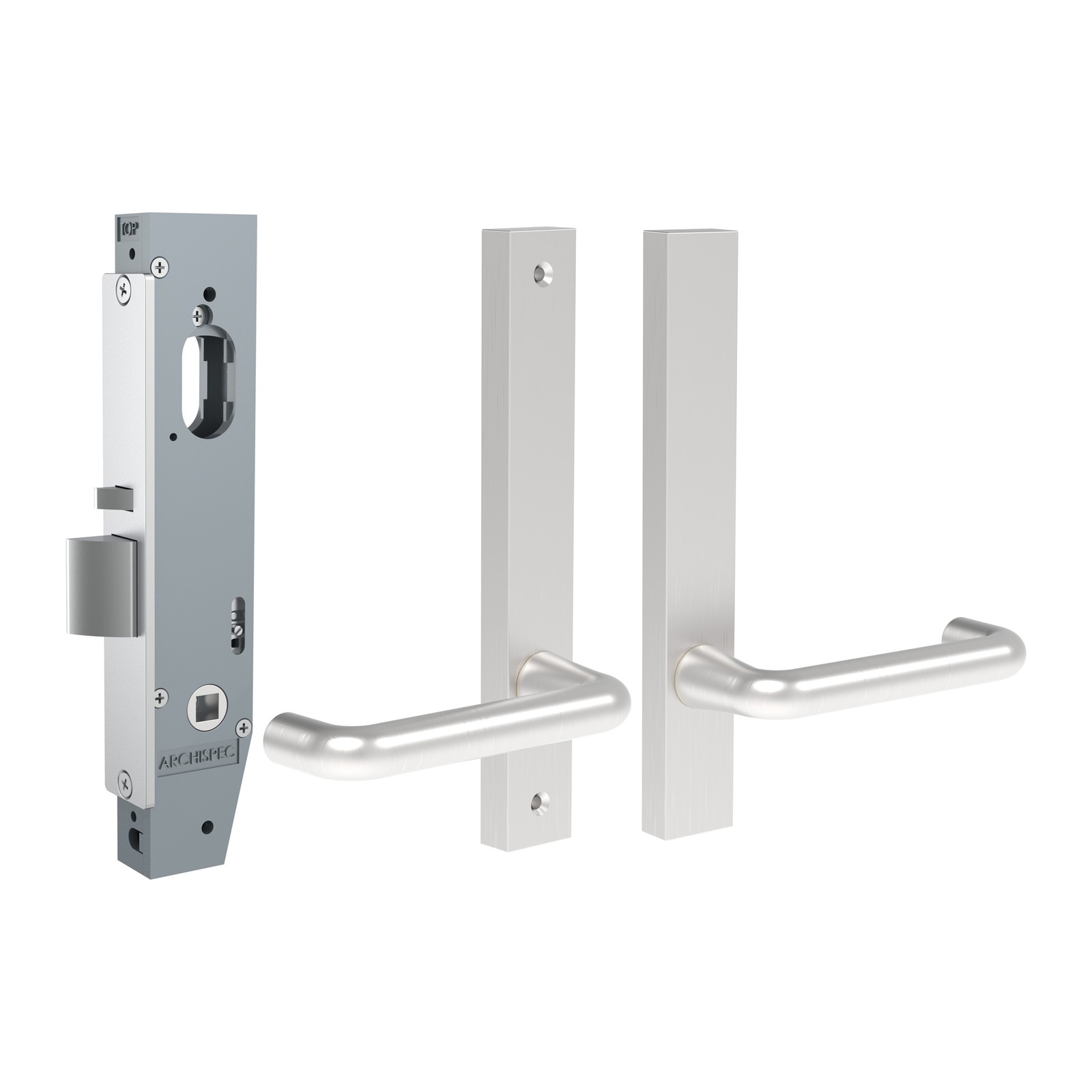

Narrow Stile Mortice Lock & Lever Set NL23-5 – Passage – No Cylinders – Satin Chrome
NL23 narrow latch oval-cylinder mortice lock. Lever furniture both sides. No cylinder outside or inside (passage). Australian stock, dispatched in one business day.
| Colour | A metallic silver-grey with high reflectivity |
|---|---|
| Composition |
Narrow latch mortice lock body · Inside and outside plates with levers |
$290.00
Key features
- NL23 narrow latch oval-cylinder mortice lock
- Lever furniture both sides
- No cylinder outside or inside (passage)
About this part
NL23-5 Narrow latch oval style mortice lock and lever set with no cylinder out or in.
Ideal for
Replacing worn or failed locks and lock furniture on narrow-stile aluminium shopfront and commercial doors, and for fabricators fitting out new doors. Check the backset, cylinder type and plate layout against your existing hardware before ordering.
Specifications
- TradeBase part number: NLS1205
- Colour / finish: Satin Chrome
- Sold as: Single unit
Frequently asked questions
A narrow stile lock is a mortice lock with a short backset, made to fit inside the slim aluminium stile of a shopfront or commercial door. The NL23 body has a 23 mm backset and the NL28 a 28 mm backset. Both take an oval cylinder and pair with the NL narrow plates and levers in this range.
Measure the backset of the lock you are replacing: the distance from the face of the faceplate to the centre of the cylinder hole. A 23 mm backset takes the NL23 and a 28 mm backset takes the NL28. The NL plates, levers and escutcheons in this range suit both bodies.
The number describes what sits on each side of the door. -1 has a cylinder outside and inside. -2 has a cylinder outside and a plain plate inside. -3 has a cylinder outside and a snib inside. -4 has a key-retract cylinder plate outside and no lever inside. -5 is a passage set with no cylinders, so it never locks.
Brand information
The lock body in this set carries the Archispec™ maker’s mark, as shown in the product image. Archispec™ is a trademark of its owner. TradeBase Australia supplies this part as an independent reseller and is not affiliated with or endorsed by Archispec™.
Warranty
Backed by a 10-year warranty against manufacturing defects, in addition to your rights under Australian Consumer Law.
Buying guide: not sure which lock, cylinder or closer you need? See the Commercial & Shopfront Door Hardware Buying Guide.
