Narrow Stile Mortice Lock Set NL23-4 – Key Retract Outside / No Lever Inside – Satin Chrome
NL23 narrow latch oval-cylinder mortice lock. Key retract cylinder plate outside. No cylinder or lever inside. Australian stock, dispatched in one business day.
| Colour | A metallic silver-grey with high reflectivity |
|---|---|
| Composition |

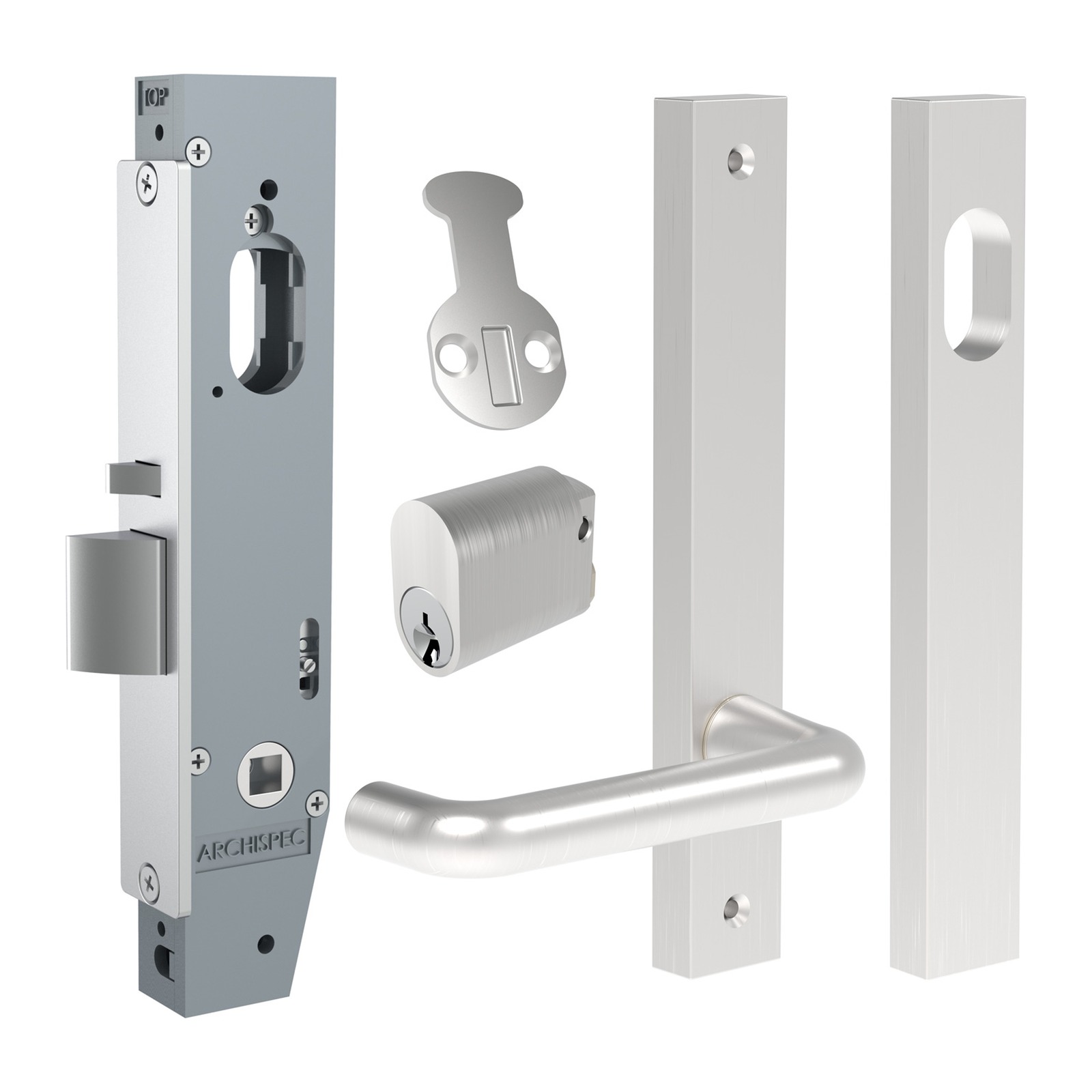

Narrow latch mortice lock body · Inside and outside plates with levers · One oval cylinder and cam |
$290.00
Key features
- NL23 narrow latch oval-cylinder mortice lock
- Key retract cylinder plate outside
- No cylinder or lever inside
- One oval cylinder with cam included, as pictured
About this part
NL23-4 Narrow latch oval style mortice lock set with key retract cyl/plate out, no cyl/lever in.
Ideal for
Replacing worn or failed locks and lock furniture on narrow-stile aluminium shopfront and commercial doors, and for fabricators fitting out new doors. Check the backset, cylinder type and plate layout against your existing hardware before ordering.
Specifications
- TradeBase part number: NLS1204
- Colour / finish: Satin Chrome
- Sold as: Single unit
Frequently asked questions
A narrow stile lock is a mortice lock with a short backset, made to fit inside the slim aluminium stile of a shopfront or commercial door. The NL23 body has a 23 mm backset and the NL28 a 28 mm backset. Both take an oval cylinder and pair with the NL narrow plates and levers in this range.
Measure the backset of the lock you are replacing: the distance from the face of the faceplate to the centre of the cylinder hole. A 23 mm backset takes the NL23 and a 28 mm backset takes the NL28. The NL plates, levers and escutcheons in this range suit both bodies.
The number describes what sits on each side of the door. -1 has a cylinder outside and inside. -2 has a cylinder outside and a plain plate inside. -3 has a cylinder outside and a snib inside. -4 has a key-retract cylinder plate outside and no lever inside. -5 is a passage set with no cylinders, so it never locks.
Brand information
The lock body in this set carries the Archispec™ maker’s mark, as shown in the product image. Archispec™ is a trademark of its owner. TradeBase Australia supplies this part as an independent reseller and is not affiliated with or endorsed by Archispec™.
Warranty
Backed by a 10-year warranty against manufacturing defects, in addition to your rights under Australian Consumer Law.
Buying guide: not sure which lock, cylinder or closer you need? See the Commercial & Shopfront Door Hardware Buying Guide.
