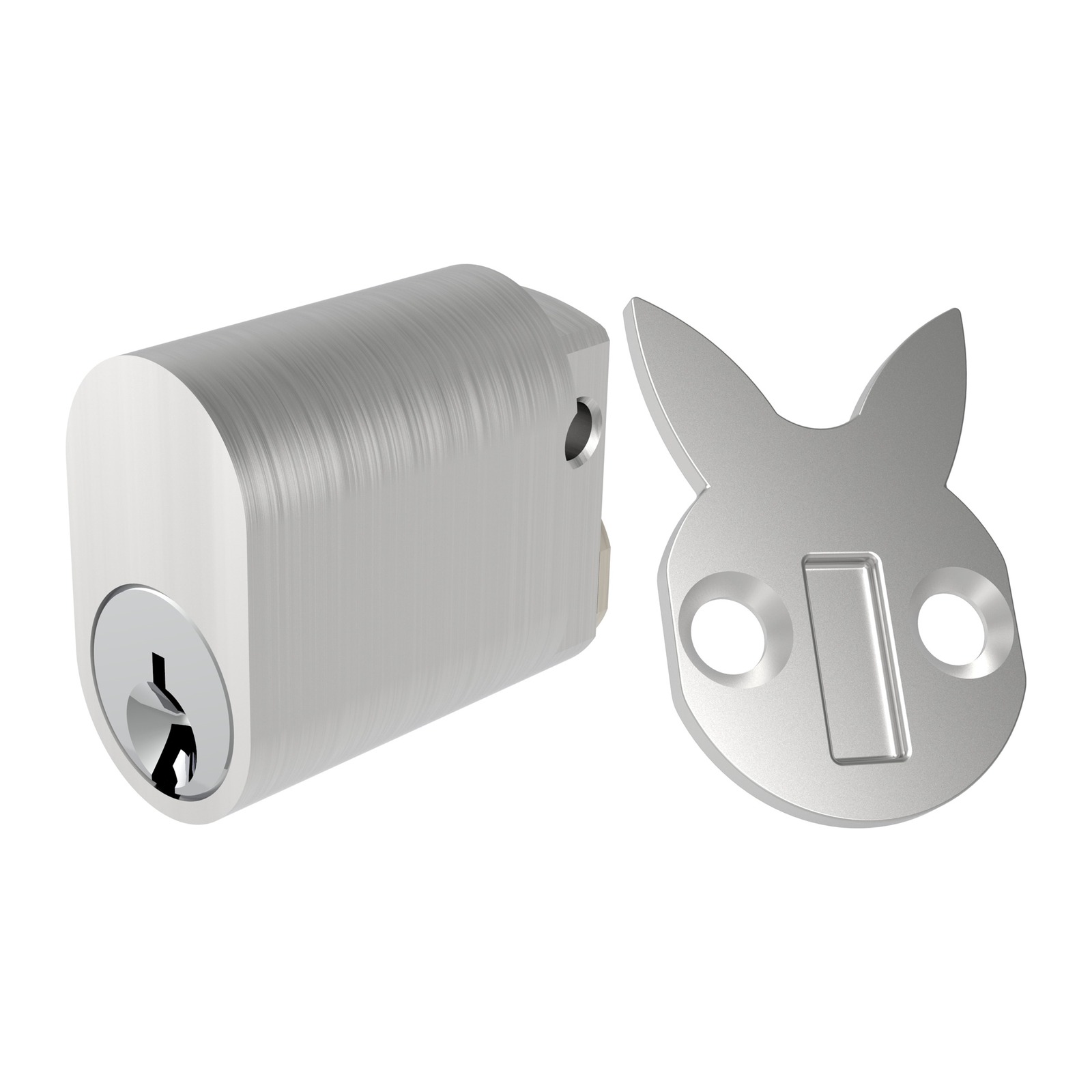

Oval Cylinder – 6 Pin C4 – Rabbit Ear Cam – Suits Swing Bolt Locks – Satin Chrome
$24.50 inc GST
6-pin C4 oval cylinder. Rabbit ear cam fitted. Keys supplied. Australian stock, dispatched within 3 business days.
| Colour | A metallic silver-grey with high reflectivity |
|---|---|
| Part Type |
Cylinder |
| Cylinder Barrel Type |
Oval – 6 Pin C4 |
Dispatched within 3 business days of ordering.
Out of stock
Key features
- 6-pin C4 oval cylinder
- Rabbit ear cam fitted
- Keys supplied
- Suits swing bolt oval mortice locks
About this part
6-pin C4 oval cylinder. Suits swing bolt oval style mortice lock. Includes rabbit ear cam, fitted.
Ideal for
Replacing or re-keying a lock cylinder on commercial and shopfront doors. Check the cylinder profile (Euro or oval), length and cam against your existing lock before ordering.
Specifications
- TradeBase part number: SBC2040
- Colour / finish: Satin Chrome
- Sold as: Single unit
Frequently asked questions
An oval cylinder has an oval body and drives the lock through a cam fixed on its back, and it is the standard for Australian narrow and wide stile commercial locks. A Euro cylinder has a pear-shaped profile, passes right through the lock body and is held by one long screw. They are not interchangeable.
C4 is the keyway profile, and the pin count is the number of pin stacks inside the barrel. A 6-pin cylinder has more possible key combinations than a 5-pin one. In this range the 65 mm Euro cylinders are 5-pin and the 70 mm Euro, oval and swing bolt cylinders are 6-pin, all with keys supplied.
The cam must match the lock. The oval cylinders here come with a Z cam fitted and an X cam supplied loose for NL and WL locks. W and Z cams are sold separately as replacements. The swing bolt cylinder comes with a rabbit ear cam fitted.
Warranty
Backed by a 10-year warranty against manufacturing defects, in addition to your rights under Australian Consumer Law.
Buying guide: not sure which lock, cylinder or closer you need? See the Commercial & Shopfront Door Hardware Buying Guide.
