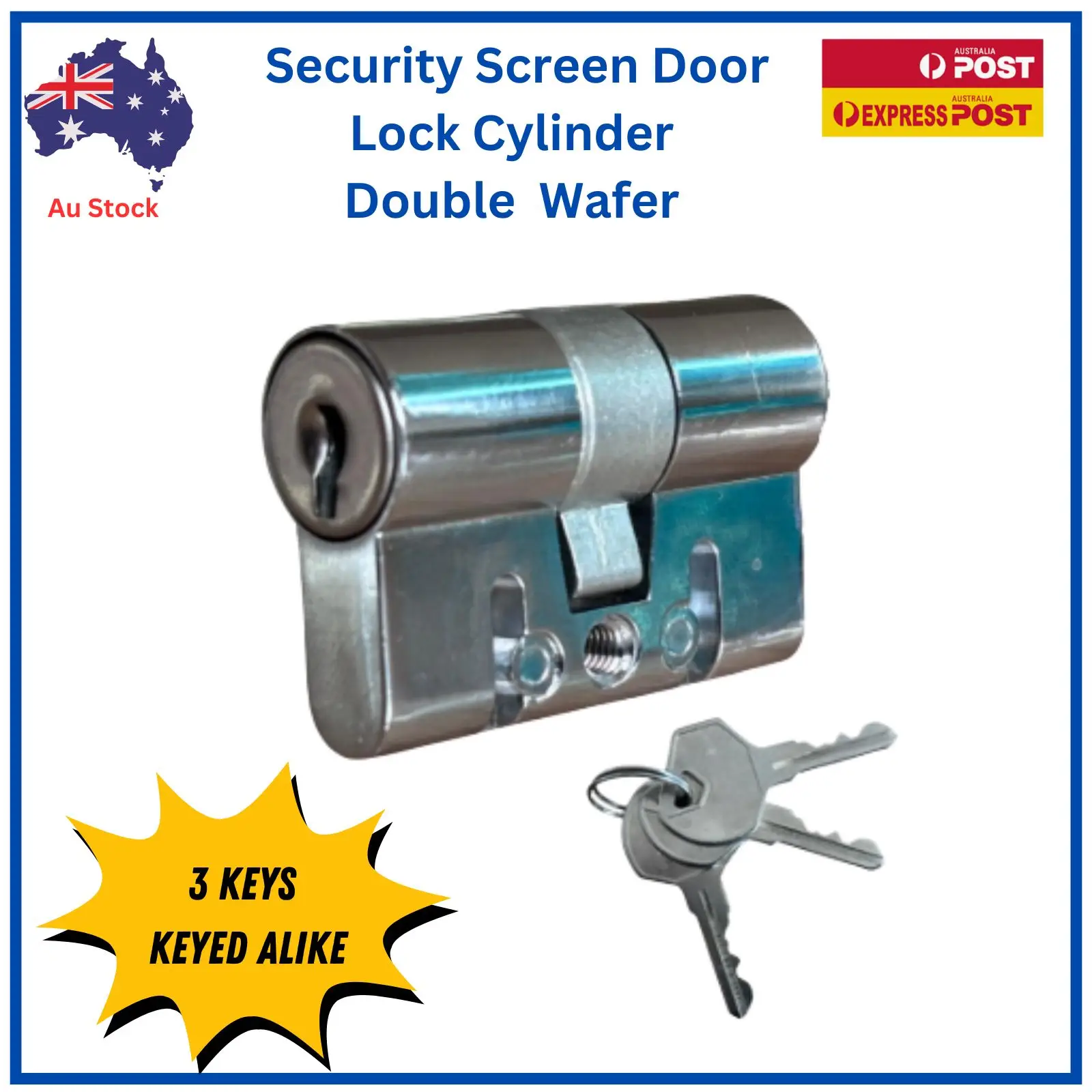

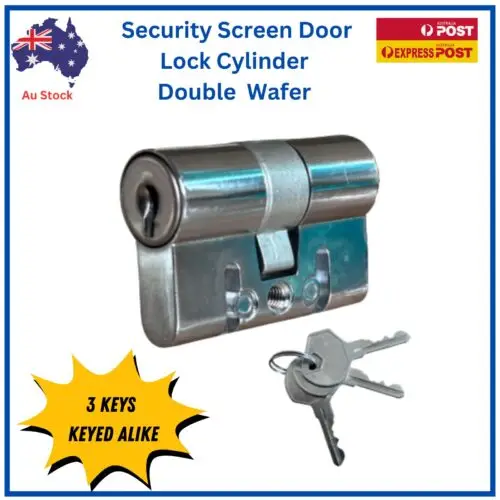

Security Door Lock Cylinder Barrel 3 Keys Standard – Replaces Whitco® Barrels
$16.99 inc GST

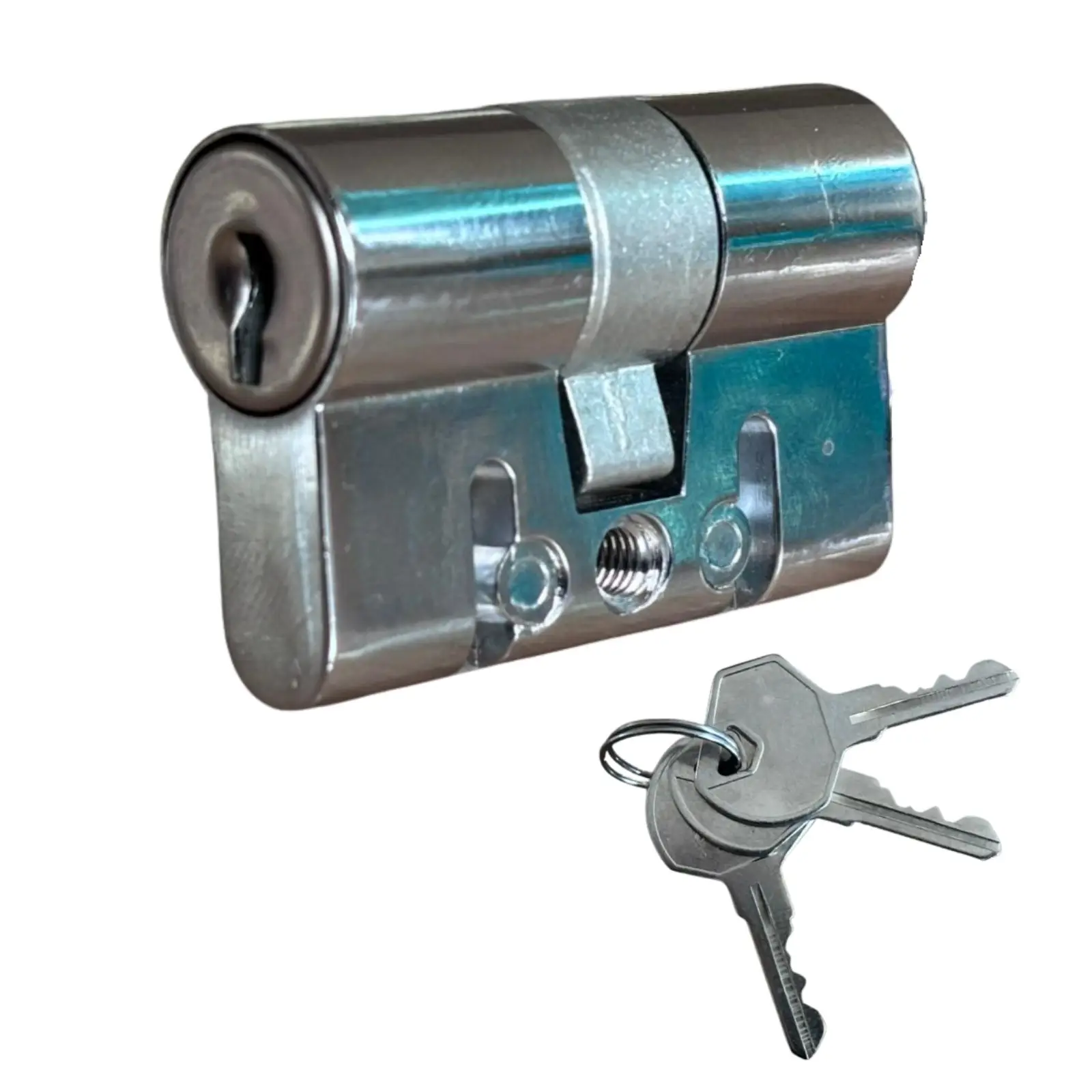

Wafer-type double cylinder with zinc die-cast body and double-sided key entry. Supplied with 3 keys and locking screw. Suitable replacement for early-model Whitco® hinged security door cylinders. Keyed alike option available.
| Security Door Lock Type |
Cylinder Only |
|---|---|
| Cylinder Barrel Type |
5 Wafer |
| Material |
Zinc Alloy |
| Suits Brand | |
| Door Type | |
| Part Type |
Cylinder |
| Locking or Non Locking Lockable (keyed) for added security and compliance, or non-locking for everyday use. All lockable winders in an order are keyed alike — one key fits all. | Key Lock on the winder - all multiple locks will be keyed alike |
In stock
Quantity pricing Up to 53% off
| Qty | Price each | Save |
|---|---|---|
| 1 | $16.99 | |
| 2 | $14.99 | 12% |
| 3–4 | $12.99 | 24% |
| 5–9 | $11.99 | 29% |
| 10–19 | $9.99 | 41% |
| 20+ | $7.99 | 53% |
Wafer-type double cylinder designed for hinged security and screen doors where compatibility with older hardware is required. Durable zinc die-cast alloy body with double-sided key operation. Supplied complete with cylinder, fixing screw, and three keys. Ideal for replacing worn wafer-style cylinders commonly found in early Australian security doors. Multiple cylinders can be supplied keyed alike for convenience.
Features
• Zinc die-cast alloy body
• Wafer-type double cylinder
• Double-sided key entry
• Supplied with 3 keys
• Locking screw included
• Hinged security & screen door use
• Keyed alike option available
Compatibility
Fits Whitco® models: 1-8802, 1-8821, 1-8822, 1-8871, 1-8872, 1-8922, 1-8931, 1-8932

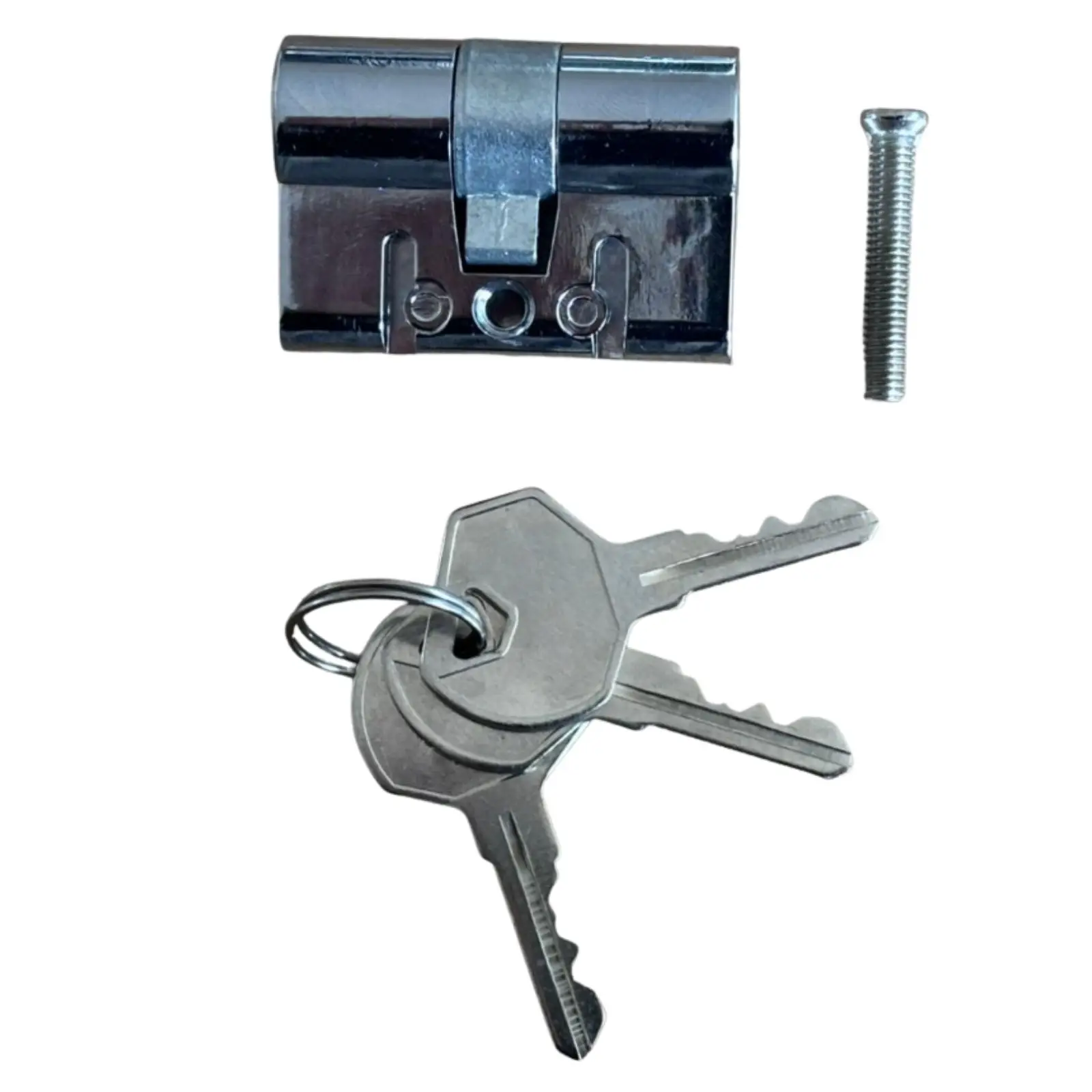

What’s Included
1 × Wafer type double cylinder
1 × Fixing / locking screw
3 × Keys
Notes
Whitco® is a registered trademark of its respective owner. This product is not manufactured by or affiliated with Whitco®.
