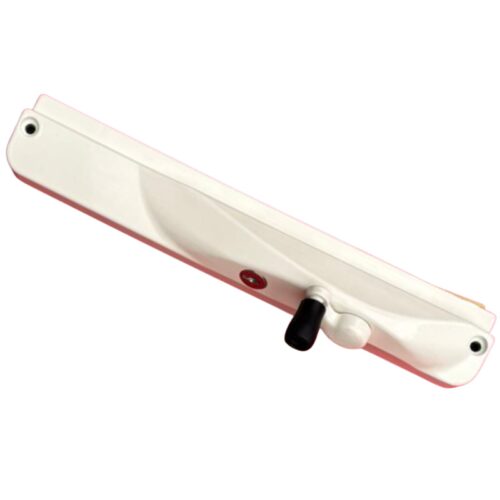

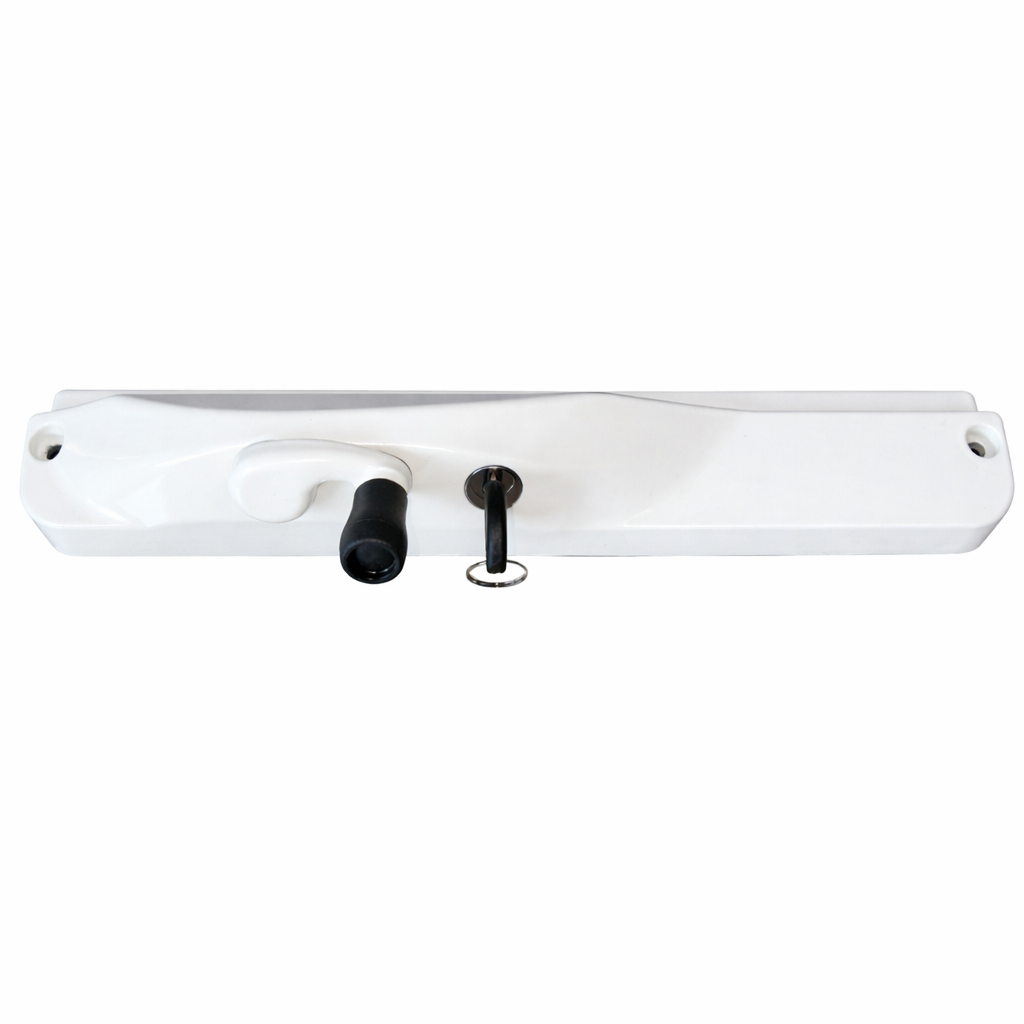

Window Chain Winder White | Left Hand | Lockable – Keyed Alike | 300mm Chain | Whitco® Compatible

Covered by a 12 year TradeBase warranty. Every TradeBase window winder is warranted for 12 years against defects in materials and workmanship — in addition to the guarantees you are entitled to under the Australian Consumer Law.

Ordering more than one? They’re all keyed alike. Every lockable TradeBase winder in your order is supplied keyed alike — one key opens them all, so you’re not juggling a different key for every window.

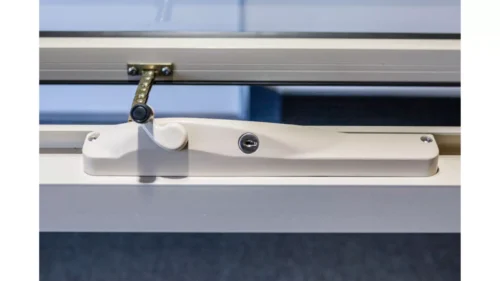

Designed to work seamlessly with both timber and aluminium window systems, this white window chain winder by TradeBase offers smooth functionality, reliable keyed locking, and a low-profile design that complements light and neutral colour schemes.

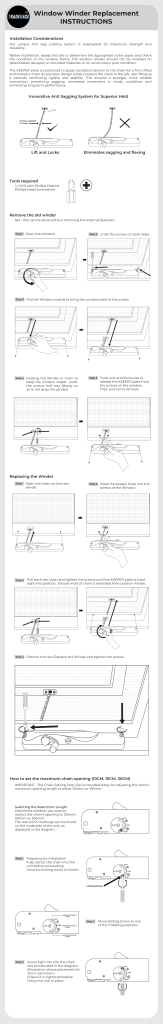

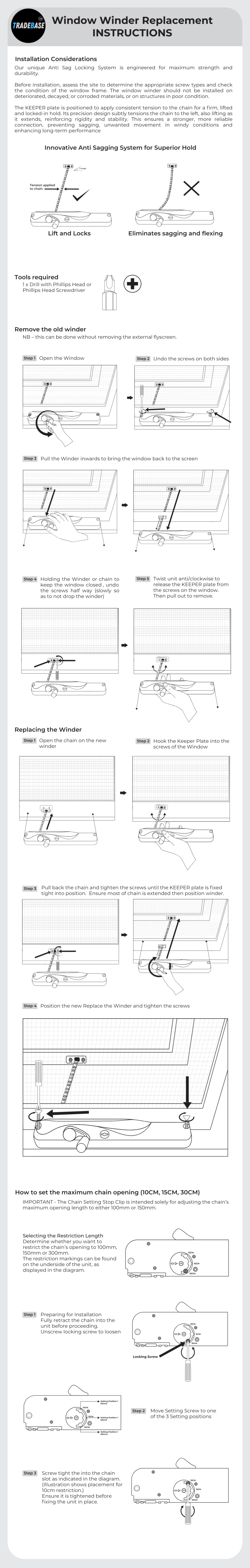

Replacing a Whitco® or Other Branded Winder?

• Check the fixing centres first: this winder measures 265mm between screw-hole centres and 280mm overall body length. Measure the hole spacing on your existing winder — if it matches, this drops straight into the same holes with no new drilling.
• Suits timber and aluminium awning and casement windows with butt hinges, hook hinges or non-friction stays.
• Direct replacement for most Whitco®, Stegbar®, Boral®, Dowell®, Trend®, AWS®, Bradnam’s® and Wideline® window winders.
• Not sure? Send us a photo of your existing winder and we’ll confirm the fit before you order.

Key Features

• Clean white finish — matches white window frames and hardware
• Rated to a 35kg sash at 300mm opening — tested, so it handles heavy timber and large aluminium sashes without straining

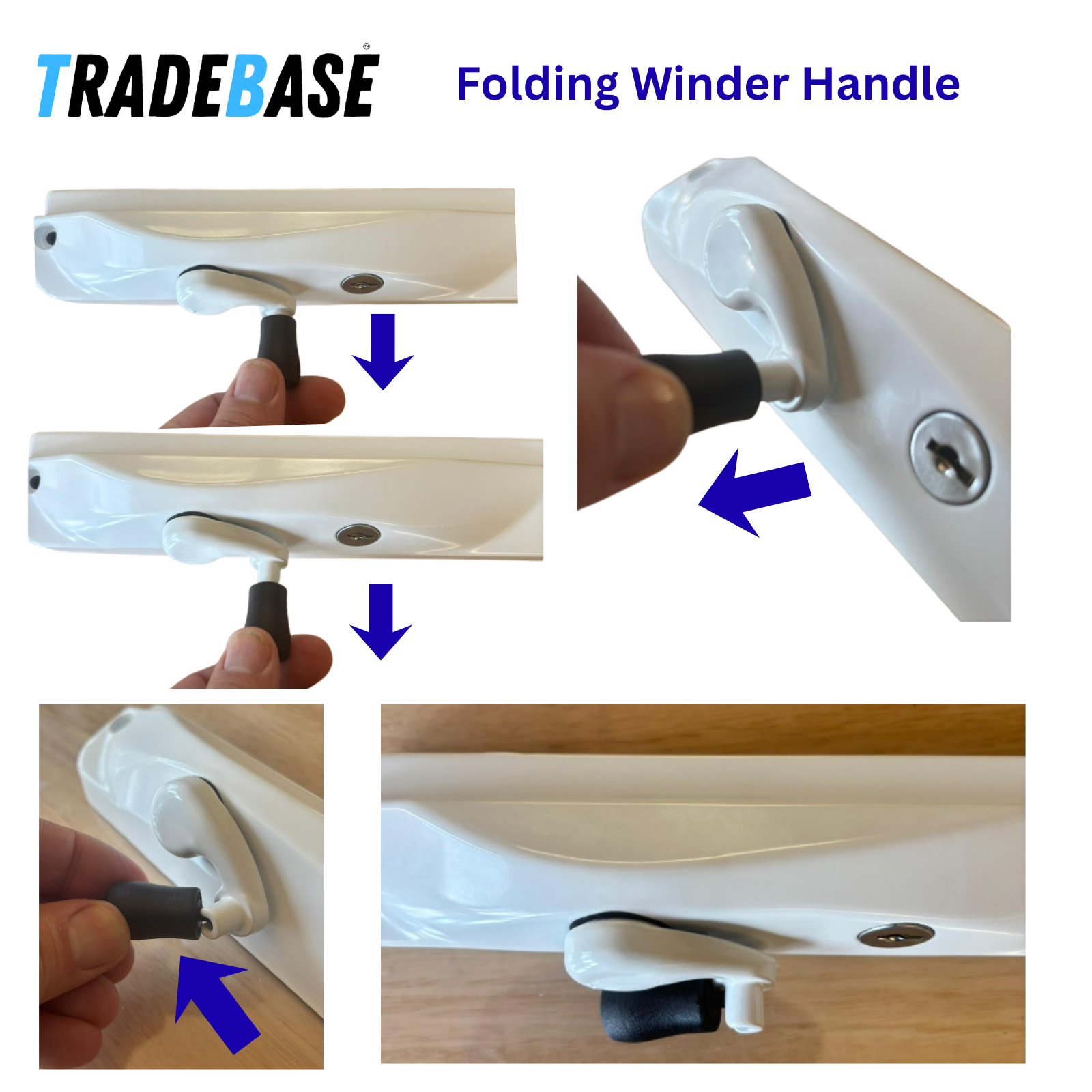

• Folding handle — folds flat to sit neatly behind blinds, curtains and furnishings, then swings out for easy winding

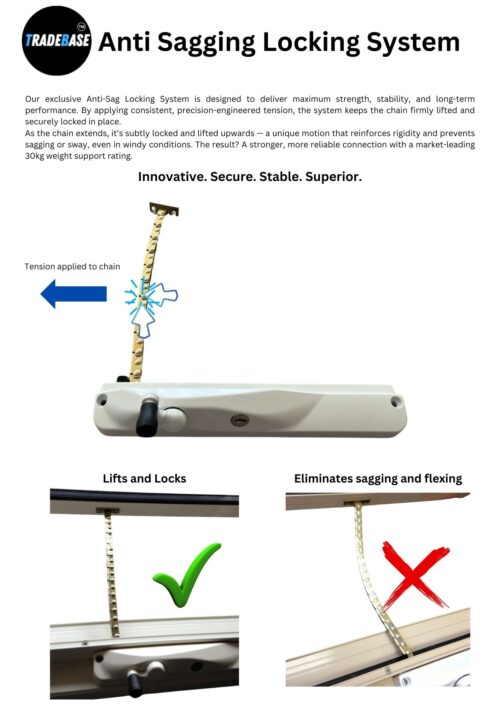

• Anti-sag, self-tensioning chain — the self-tensioning design keeps the chain taut, preventing sag and wind-shudder rattle
• Easy Operation:
  • Smooth, reliable operation with a folding ergonomic handle
  • Convenient through-flyscreen operation
• Secure and Adjustable:
  • Zinc-plated steel chain
  • Stainless steel fixing screws included
  • 300mm maximum opening
  • Chain restriction switch included — limits the maximum window opening for child safety and fall prevention
  • Adjustable chain restriction — set the switch and the window opening meets NCC fall-prevention (high-rise / upper-storey) opening limits, plus helps satisfy swimming-pool barrier requirements (AS 1926.1). A simple compliance fix for homeowners, landlords and strata managers
• Built to Last:
  • Robust diecast zinc body and mechanism for durability
  • Mild steel zinc-plated chain for everyday corrosion resistance
  • 12 year warranty against defects in materials and workmanship
• Flexible Options:
  • Lockable keyed alike — order two, five or fifty and every lockable winder opens with the same key
  • Compatible with retrofitting older models

Specifications

• Colour: White
• Handle Side: Left Hand
• Chain Type: Mild steel, zinc-plated
• Chain Length: 300mm maximum opening
• Locking: Lockable, keyed alike (all lockable winders in an order share one key)
• Handle: Folding ergonomic handle
• Fixings: Stainless steel fixing screws included

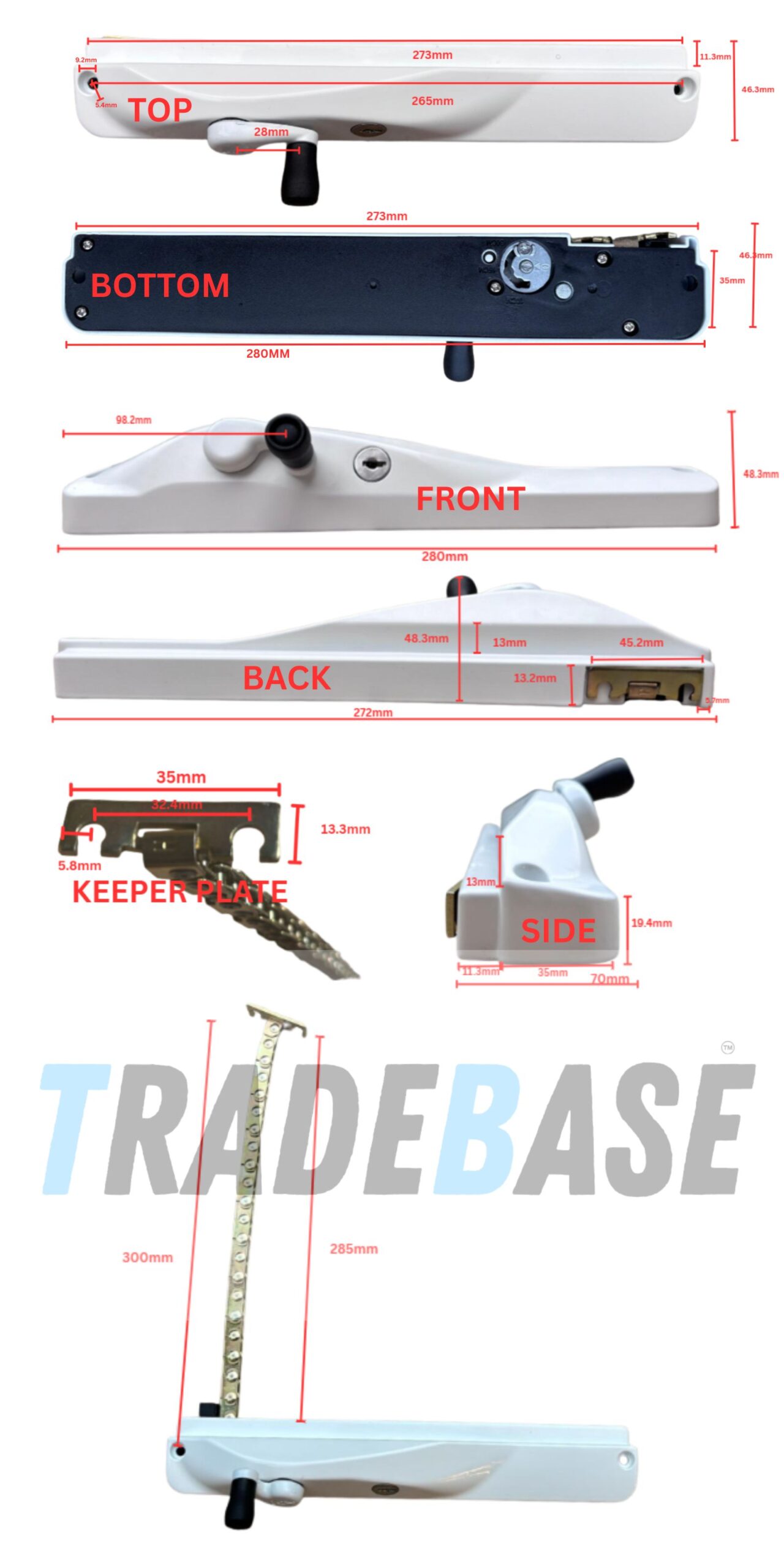

• Dimensions: 280mm (L) (265mm between hole fixing centres) x 46mm (D) x 47mm (H). Back 273mm long.
• Sash Weight: Tested to 35kg at 300mm opening
• Warranty: 12 years against defects in materials and workmanship
• Compliance: Exceeds Australian window lock standards for security and durability

What’s Included

• 1 x White window chain winder (Left Hand)
• Chain restriction switch — adjustable for NCC fall-prevention & pool-barrier compliance
• Stainless steel fixing screws

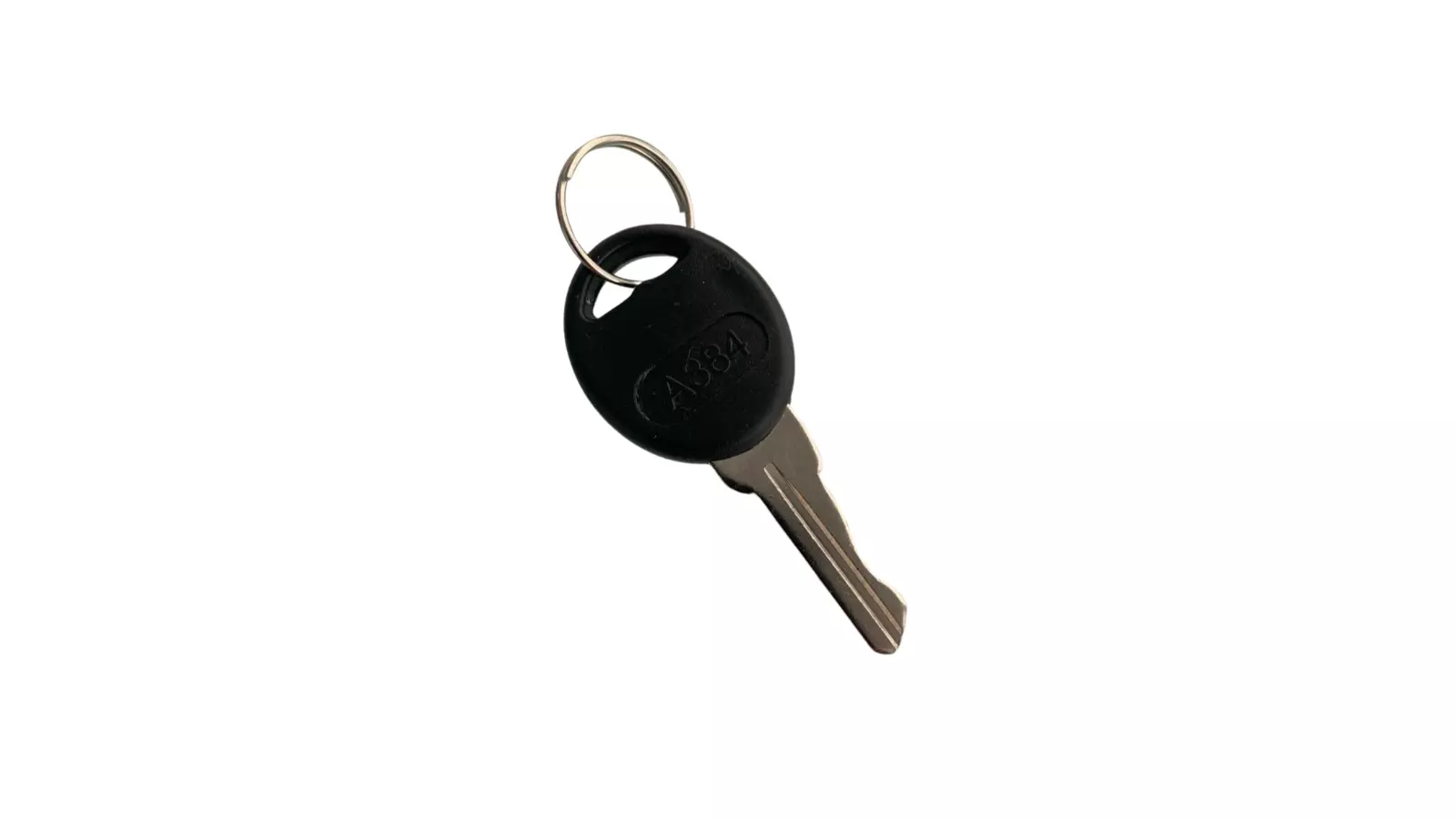

• Keys — and where you order multiple lockable winders, they are all keyed alike

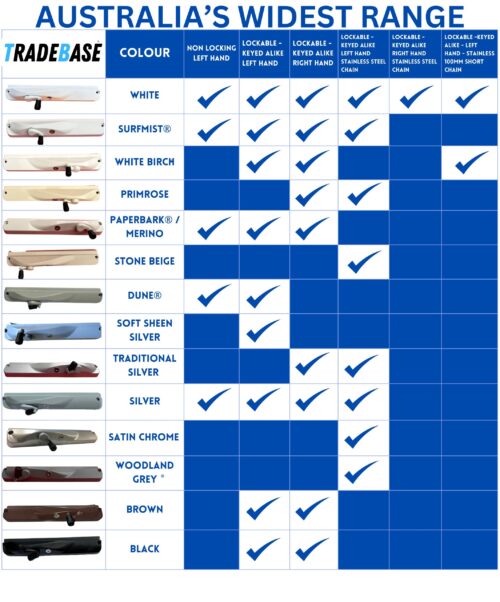

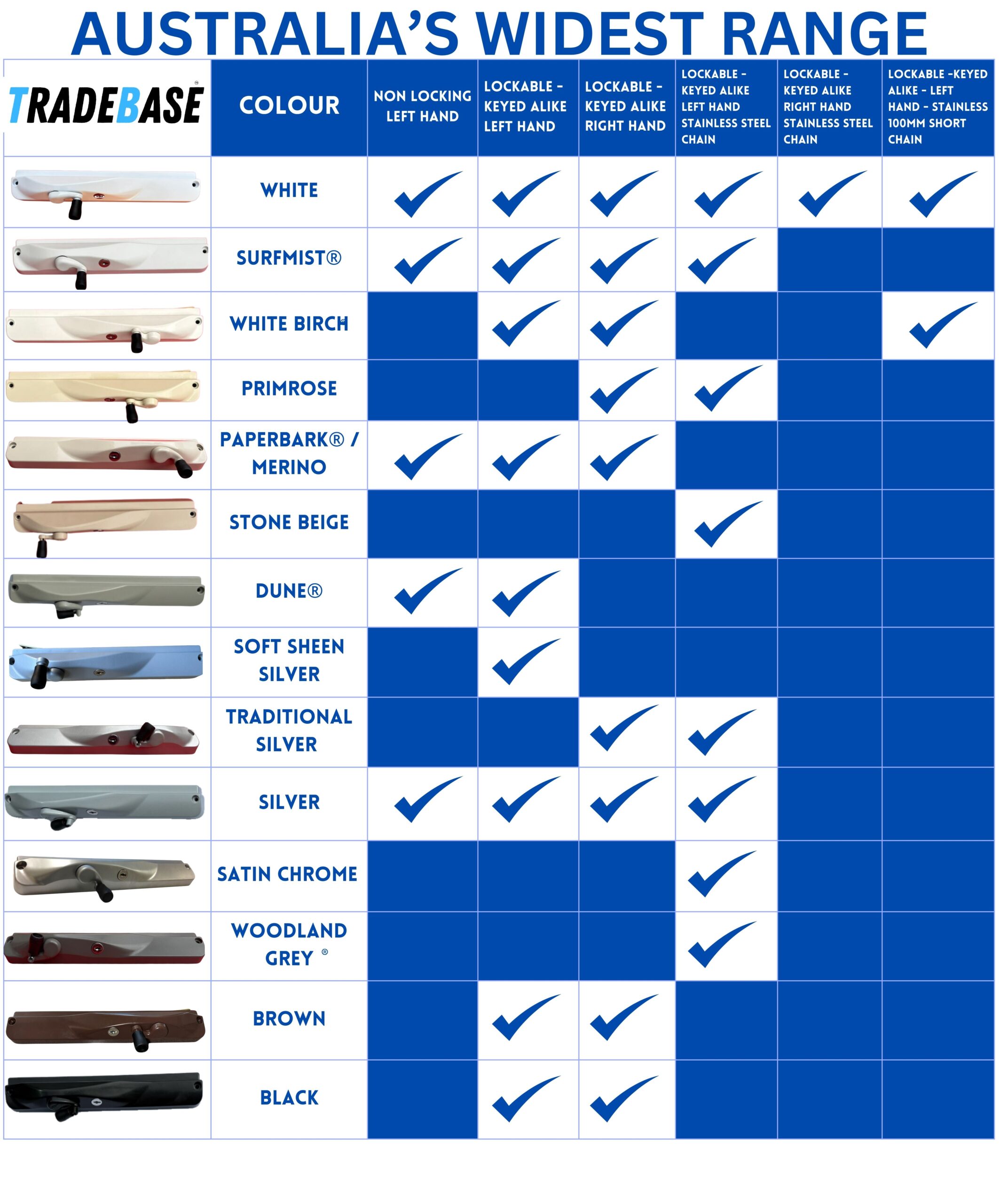

Also Available

• Same winder with a 304 stainless steel chain — ideal for coastal and corrosion-prone areas
• White Right Hand version
• White Left Hand with a 150mm restricted opening

Additional Benefits

• Minimal Interference: Folding low-profile handle keeps clear of blinds and curtains
• Weather-Resistant finish suited to Australian conditions
• Trusted by industry: Used by many of Australia’s leading window manufacturers

TradeBase window winders are an independent replacement part manufactured by TradeBase Australia. Whitco®, Stegbar®, Boral®, Dowell®, Trend®, AWS®, Bradnam’s® and Wideline® are the registered trademarks of their respective owners and are referenced here solely to indicate fitment compatibility. TradeBase is not affiliated with, endorsed by or sponsored by those companies.
