Window Winder Surfmist® | Left Hand | Non-Keyed | 120mm Restricted Chain – Replaces Most Winder Brands incl. Whitco®
Original price was: $32.99.$19.99Current price is: $19.99. inc GST
Surfmist® window winder — colour-matched to your COLORBOND® home, no more mismatched white hardware. Left Hand, non-keyed (also available as a keyed-alike lockable version), 120mm restricted chain, 35kg. 120mm restricted opening meets NCC high-rise/upper-storey fall-prevention — not suitable for pool-barrier windows, which require a 100mm maximum under AS1926.1. Folding handle, anti-sag self-tensioning chain, stainless steel fixing screws. Fits most Australian awning and casement windows — you don’t need to know your window’s brand, just the hand, the chain length and whether it locks. Replaces most Whitco®, Stegbar®, Boral®, Dowell®, Trend®, AWS®, Bradnam’s® and Wideline® winders.
| Colour | Surfmist®-Soft warm white (Colorbond® match) |
|---|---|
| Handle Side The side the winder handle is mounted on — important for flyscreen and mounting alignment. |
LeftHand Left Hand WInder - important to align chain with screen and centre onto the window sash |
| Locking or Non Locking Lockable (keyed) for added security and compliance, or non-locking for everyday use. All lockable winders in an order are keyed alike — one key fits all. | |
| Chain Type Zinc-coated steel as standard, or stainless steel for coastal areas and extra longevity. | Zinc Plated Steel Chain coated anti sagging technology |
| Chain Length |
Restricted 120mm |
| Material |
Zinc Alloy |
| Suits Brand | , , , , , , , |
In stock
Quantity pricing Up to 18% off
| Qty | Price each | Save |
|---|---|---|
| 1 | $19.99 | |
| 2–5 | $18.99 | 5% |
| 6–9 | $18.39 | 8% |
| 10–19 | $17.19 | 14% |
| 20+ | $16.39 | 18% |
Window Winders Colour-Matched to Surfmist®
Match your winders to your Surfmist® windows, fascias and trims. Surfmist® is one of Australia’s most popular COLORBOND® colours — yet most replacement winders only come in plain white or cream that never quite matches. TradeBase makes them in true Surfmist®, so your hardware blends in instead of standing out.
Need it lockable? We also stock this winder as a keyed-alike lockable version — order several and one key opens them all.
Designed to work seamlessly with both timber and aluminium window systems, this Surfmist® window chain winder by TradeBase offers smooth functionality, smooth non-locking operation, and a low-profile design that complements a light, modern colour scheme.
Key Features
- Colour-matched to COLORBOND® Surfmist® — blends with Surfmist® frames, fascias and trims instead of a mismatched white winder
- Folding handle — folds flat to sit neatly behind blinds, curtains and furnishings, then swings out for easy winding
- Anti-sag, self-tensioning chain — the self-tensioning design keeps the chain taut, preventing sag and wind-shudder rattle
- Versatile Compatibility: Suitable for timber and aluminium awning and casement windows with butt or hook hinges or non-friction stays.
- Easy Operation:
- Smooth, reliable operation with a folding ergonomic handle
- Convenient through-flyscreen operation
- Secure and Adjustable:
- Zinc-plated steel chain
- Stainless steel fixing screws included
- 120mm restricted opening
- 120mm restricted opening for high-rise and upper-storey fall-prevention (NCC). Not suitable for pool-barrier windows, which require a 100mm maximum.
- Built to Last:
- Robust diecast zinc body and mechanism for durability
- Mild steel zinc-plated chain for everyday corrosion resistance
- Flexible Options:
- Non-locking operation (also available as a keyed-alike lockable version)
- Compatible with retrofitting older models
Specifications
- Colour: Surfmist®
- Handle Side: Left Hand
- Chain Type: Mild steel, zinc-plated
- Chain Length: 120mm (restricted)
- Locking: Non-locking (non-keyed)
- Handle: Folding ergonomic handle
- Fixings: Stainless steel fixing screws included

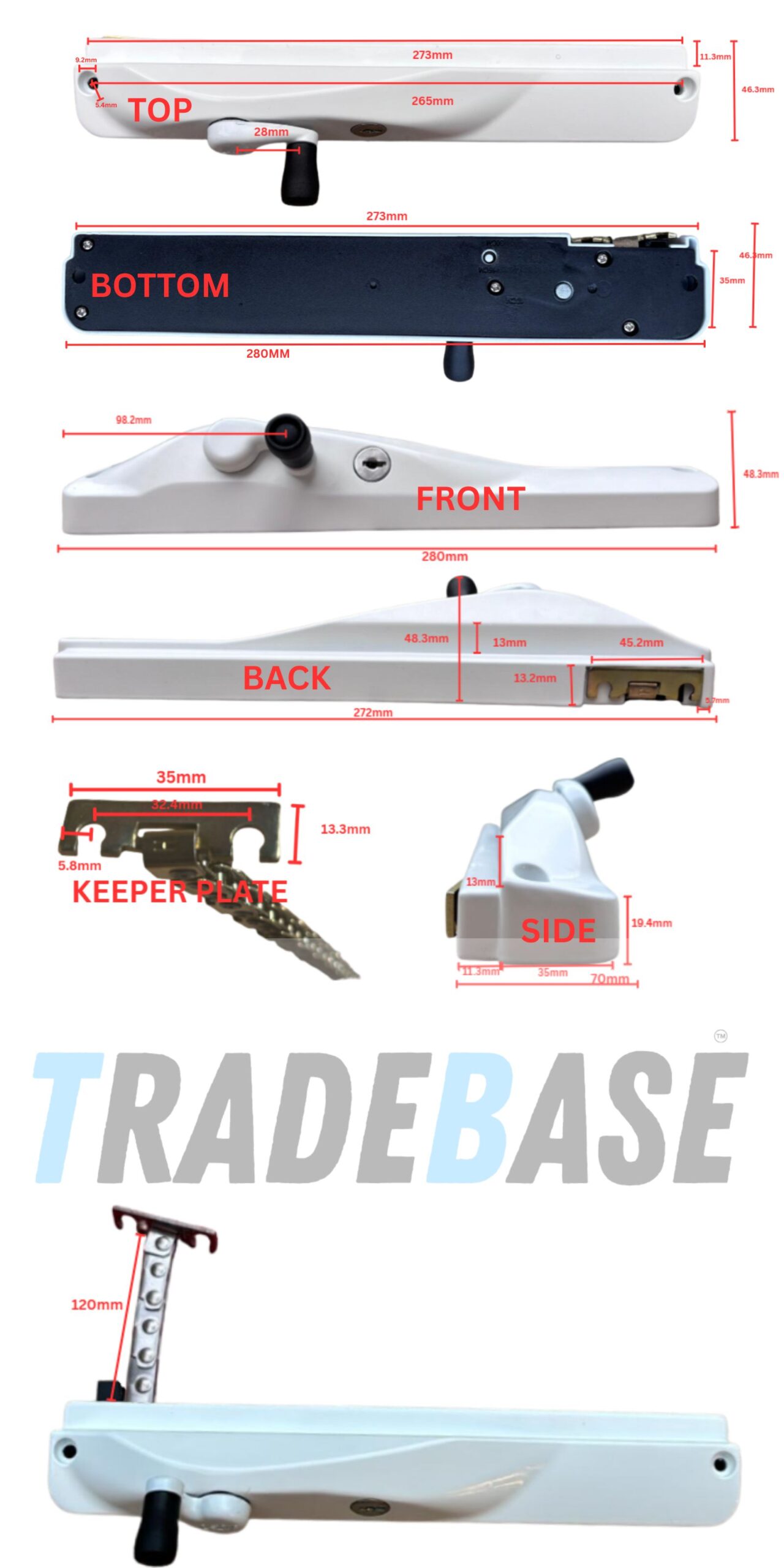

- Dimensions: 280mm (L) (265mm between hole fixing centres) x 46mm (D) x 47mm (H). Back 273mm long.
- Sash Weight: Supports up to 35kg at 300mm opening
- Compliance: Exceeds Australian window lock standards for security and durability. The 120mm restricted opening meets National Construction Code (NCC) fall-prevention requirements for high-rise and upper-storey windows (restricts the opening so a 125mm sphere cannot pass on windows 2m or more above ground). Not suitable for swimming-pool barrier windows, which require a maximum 100mm opening under AS1926.1.
What’s Included
- 1 x Surfmist® window chain winder (Left Hand)
- Chain restriction switch
- Stainless steel fixing screws
- (non-keyed — no lock/key)
Compatible Brands
- Direct replacement for most Whitco®, Stegbar®, Boral®, Dowell®, Trend®, AWS®, Bradnam’s® and Wideline® window winders
Also Available
- Full 300mm opening (non-keyed) version

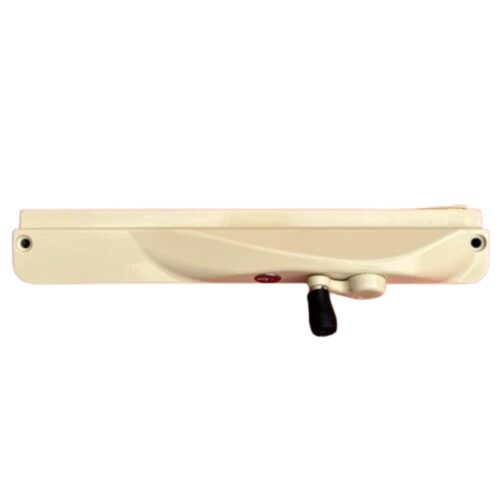

- Lockable keyed-alike (300mm) version
- 304 stainless steel version — for coastal areas
Additional Benefits
- Minimal Interference: Folding low-profile handle keeps clear of blinds and curtains
- Weather-Resistant finish suited to Australian conditions
TradeBase® is an Australian supplier of commercial-grade building, hardware, and construction products designed for real-world use across residential, commercial, and industrial projects.
Our range covers structural materials, fittings, fixings, and access solutions selected for durability, compliance, and consistency—supporting applications from renovations and fit-outs through to large-scale trade and project supply.
TradeBase products are specified with a focus on quality control, dimensional accuracy, and reliable performance, making them suitable for builders, installers, fabricators, property managers, and serious DIY users.
