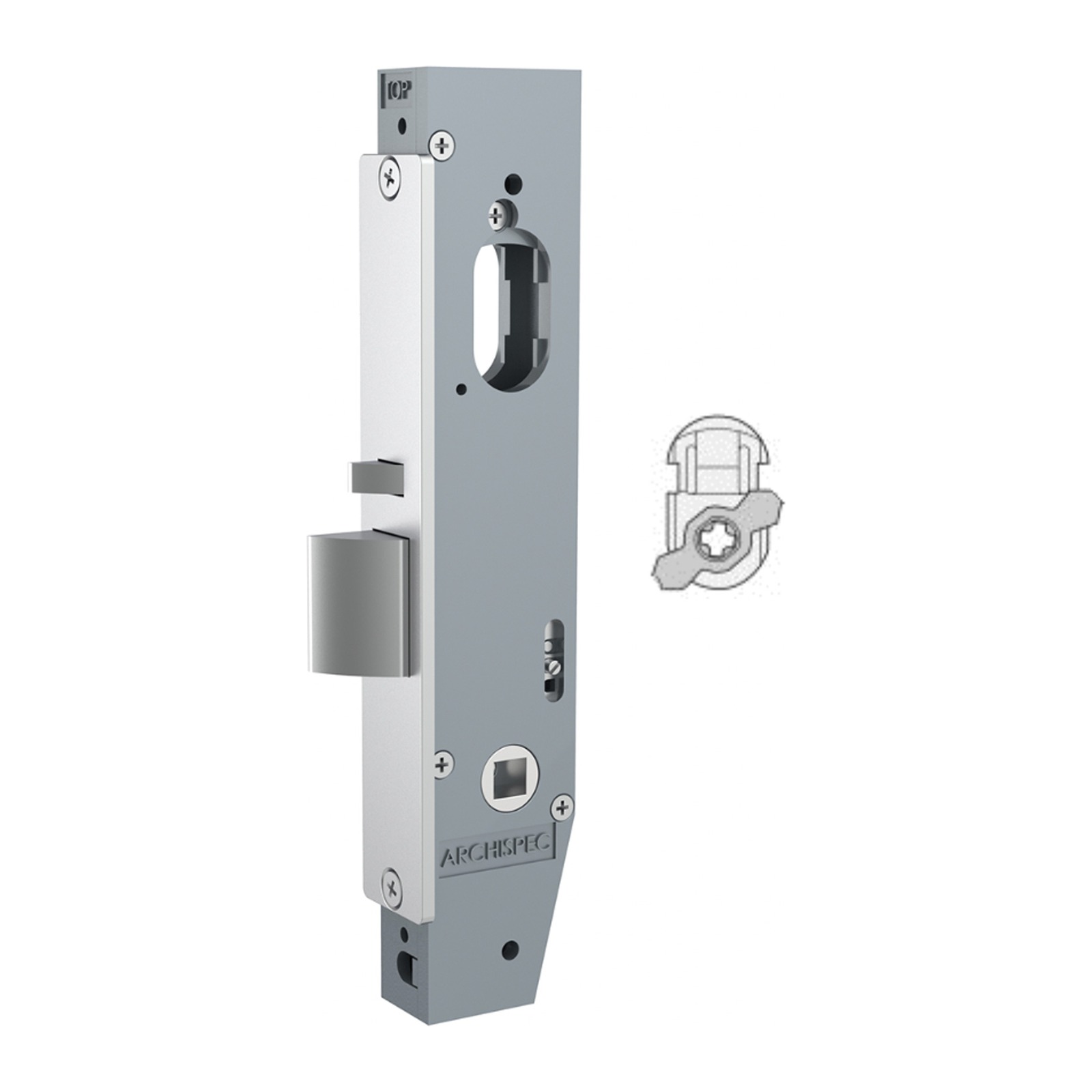

Narrow Stile Mortice Lock NL23 – Oval Cylinder – 23mm Backset
Narrow latch mortice lock body. 23mm backset. Oval cylinder type. Australian stock, dispatched in one business day.
$171.00
Key features
- Narrow latch mortice lock body
- 23mm backset
- Oval cylinder type
- Suits narrow stile hinged doors
About this part
NL23 Narrow latch oval style mortice lock with 23mm backset. Suits narrow stiles, hinged doors.
Ideal for
Replacing worn or failed locks and lock furniture on narrow-stile aluminium shopfront and commercial doors, and for fabricators fitting out new doors. Check the backset, cylinder type and plate layout against your existing hardware before ordering.
Specifications
- TradeBase part number: NLM1223
- Sold as: Single unit
Frequently asked questions
A narrow stile lock is a mortice lock with a short backset, made to fit inside the slim aluminium stile of a shopfront or commercial door. The NL23 body has a 23 mm backset and the NL28 a 28 mm backset. Both take an oval cylinder and pair with the NL narrow plates and levers in this range.
Measure the backset of the lock you are replacing: the distance from the face of the faceplate to the centre of the cylinder hole. A 23 mm backset takes the NL23 and a 28 mm backset takes the NL28. The NL plates, levers and escutcheons in this range suit both bodies.
The number describes what sits on each side of the door. -1 has a cylinder outside and inside. -2 has a cylinder outside and a plain plate inside. -3 has a cylinder outside and a snib inside. -4 has a key-retract cylinder plate outside and no lever inside. -5 is a passage set with no cylinders, so it never locks.
Brand information
The lock body in this set carries the Archispec™ maker’s mark, as shown in the product image. Archispec™ is a trademark of its owner. TradeBase Australia supplies this part as an independent reseller and is not affiliated with or endorsed by Archispec™.
Warranty
Backed by a 10-year warranty against manufacturing defects, in addition to your rights under Australian Consumer Law.
Buying guide: not sure which lock, cylinder or closer you need? See the Commercial & Shopfront Door Hardware Buying Guide.
